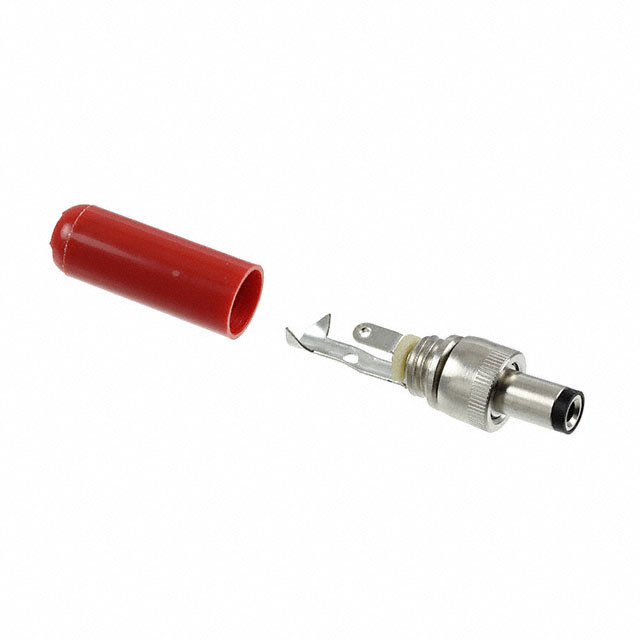

Images are for reference only.

Delivery：

Payment：

765K

Or copy the link below:

Mfr.Part #: 765K

Manufacturer: Switchcraft / Conxall

Package / Case

Datasheet: Download

Description: CONN PWR PLUG 2.5X5.5MM SOLDER

Stock: 12

In Stock ：: 12

Request A Quote(RFQ)

* Fullname:

* Company:

* E-Mail:

Phone:

Comment:

* Quantity:

Manufacturer :: Switchcraft / Conxall
Product Category :: Power Connectors

RoHS Status :: ROHS3 Compliant

Insulation Color :: Red

MIL Conformance :: No

Industry Recognized Mating Diameter :: 2.50mm ID (0.098), 5.50mm OD (0.217)

Lead Free :: Lead Free

Color :: Black, Red

Packaging :: Bulk

Option :: GENERAL PURPOSE

Contact Material - Plating :: Tin

Termination :: Solder Eyelet(s)

Orientation :: Straight

Gender :: FEMALE

Shielding :: Unshielded

Factory Lead Time :: 12 Weeks

Mounting Type :: Free Hanging (In-Line)

Mount :: Cable, Free Hanging

Connector Type :: PLUG

Contact Plating :: Nickel

Moisture Sensitivity Level (MSL) :: Not Applicable

Actual Diameter :: 0.083 (2.10mm ID), 0.217 (5.50mm OD)

Contact Gender :: Male

Current Rating :: 5A

Max Current Rating :: 5A

Internal Switch(s) :: Does Not Contain Switch

Number of Terminations :: 2

Number of Ports :: 1

Body Color :: Silver, Red

Number of Positions/Contacts :: 2 Conductors, 2 Contacts

Housing Material :: Thermoplastic

Feature :: Thread Lock

Includes :: 2 pcs - 1 Connector, 1 Handle

Length :: 43.18mm

Body Material :: Brass

IEC Conformance :: No

DIN Conformance :: No

Rated Current (Power) :: 5A

Datasheets: 765K

Introducing Power Connectors Switchcraft / Conxall 765K from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), Number of Terminations：2, 765K pinout, 765K datasheet PDF, 765K amp .Beyond Power Connectors Switchcraft / Conxall 765K ,we also offer KLDHCX-0202-BC-1, EP501A, EP501B, Our vast inventory has you covered. Contact us now for immediate solutions.
