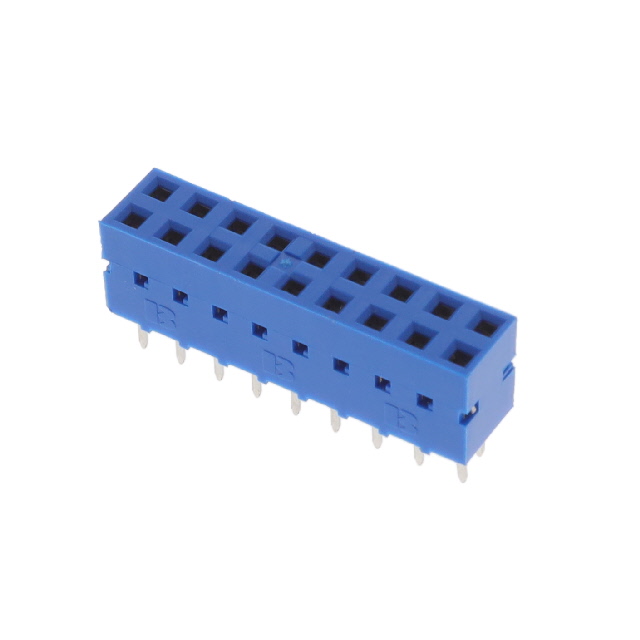

76342-309LF
Or copy the link below:
- Mfr.Part #
- 76342-309LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS 0.1 GOLD PCB
- Stock
- 523
- In Stock ：
- 523
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Orientation :
- Straight
- Insulation Resistance :
- 100GOhm
- Lead Pitch :
- 2.54mm
- Insulation Height :
- 0.275 6.99mm
- Number of Positions :
- 18
- Contact Type :
- Female Socket
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 9 Weeks
- Max Operating Temperature :
- 125°C
- Contact Length - Post :
- 0.114 2.90mm
- Style :
- Board to Board
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Pitch :
- 2.54mm
- Mounting Type :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Packaging :
- Tube
- Number of Rows :
- 2
- Series :
- Dubox™
- REACH SVHC :
- No SVHC
- Number of Contacts :
- 18
- Gender :
- Receptacle
- Length :
- 22.78mm
- Insulation Material :
- Thermoplastic, Glass Filled
- Fastening Type :
- Push-Pull
- Contact Shape :
- Square
- Contact Material :
- Phosphor Bronze
- Contact Finish - Post :
- Tin
- Min Operating Temperature :
- -65°C
- Color :
- Blue
- Contact Plating :
- Gold
- Housing Color :
- Blue
- Current Rating :
- 3A
- Stack Height (Mating) :
- 11.04mm
- Insulation Color :
- Blue
- Number of Poles :
- 18
- Mount :
- Through Hole
- Lead Free :
- Lead Free
- Housing Material :
- Thermoplastic
- Published :
- 2005
- Connector Type :
- Receptacle
- Max Voltage Rating (AC) :
- 1kV
- Contact Resistance :
- 20mOhm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 5.08mm
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Datasheets
- 76342-309LF
76342-309LF Documents
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Thermoplastic, Glass Filled 18 Positions Female Socket
76342-309LF Overview
The packaging is Receptacle.Mounting type is Through Hole.To package the product, we use a Tube case.This product is from the Dubox™ Series.It is best used at temperatures below 125°C.-65°C is the minimum temperature this device can operate at.A possible application is Automotive, General Purpose, Industrial, Telecommunications.Mounted by Through Hole.
76342-309LF Features
Dubox™ series
76342-309LF Applications
There are a lot of Amphenol ICC (FCI)
76342-309LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
