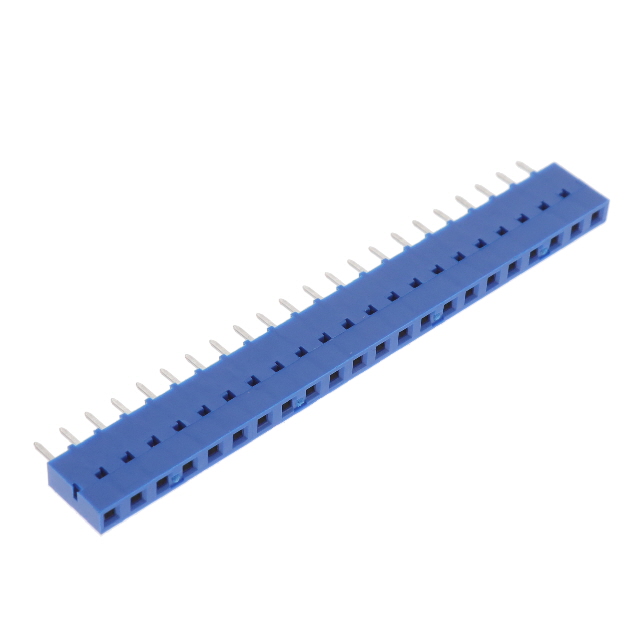

76341-322LF
Or copy the link below:
- Mfr.Part #
- 76341-322LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 22POS 0.1 GOLD PCB
- Stock
- 970
- In Stock ：
- 970
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Mount :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Contact Resistance :
- 20mOhm
- REACH SVHC :
- No SVHC
- Depth :
- 2.54mm
- Contact Plating :
- Gold
- Number of Positions Loaded :
- All
- Max Voltage Rating (AC) :
- 1kV
- Number of Contacts :
- 22
- Number of Positions :
- 22
- Factory Lead Time :
- 9 Weeks
- Number of Rows :
- 1
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Straight
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Min Operating Temperature :
- -65°C
- Contact Shape :
- Square
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Length - Post :
- 0.114 2.90mm
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Length :
- 55.8mm
- Insulation Height :
- 0.275 6.99mm
- Lead Free :
- Lead Free
- Color :
- Blue
- Gender :
- Receptacle
- Mounting Type :
- Through Hole
- Packaging :
- Tube
- Insulation Material :
- Thermoplastic, Glass Filled
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Board
- Pitch - Mating :
- 0.100 2.54mm
- Published :
- 2014
- Contact Type :
- Female Socket
- Termination :
- Solder
- Series :
- Dubox™
- Max Operating Temperature :
- 125°C
- Connector Type :
- Receptacle
- Housing Material :
- Thermoplastic
- Stack Height (Mating) :
- 11.04mm
- Insulation Color :
- Blue
- RoHS Status :
- RoHS Compliant
- Pitch :
- 2.54mm
- Fastening Type :
- Push-Pull
- Housing Color :
- Blue
- Datasheets
- 76341-322LF
76341-322LF Documents
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Thermoplastic, Glass Filled 22 Positions Female Socket
76341-322LF Overview
The product comes in a package of Receptacle.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Dubox™ Series.Use it when the temperature is below 125°C.Temperatures below -65°C are required for this device to operate.The device may be used for the following applications: Automotive, General Purpose, Industrial, Telecommunications.It is mounted by Through Hole.
76341-322LF Features
Dubox™ series
76341-322LF Applications
There are a lot of Amphenol ICC (FCI)
76341-322LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
