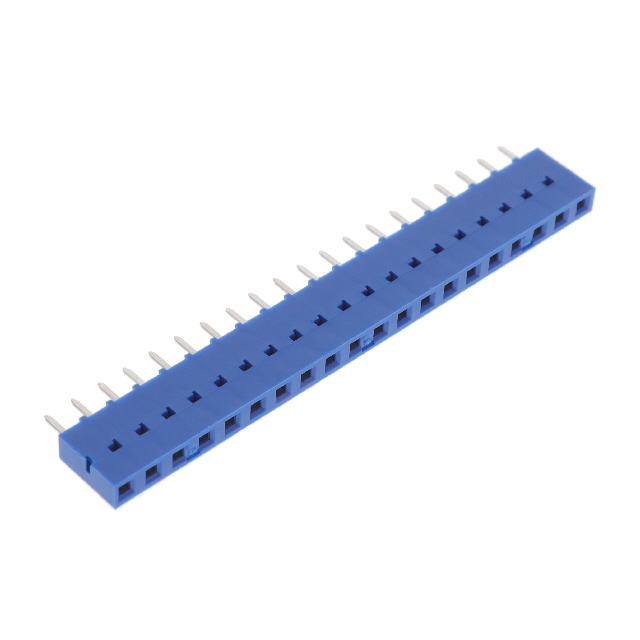

76341-320LF

Manufacturer :

Amphenol Communications Solutions

Product Category :

Headers, Receptacles, Female Sockets

Contact Length - Post :

0.114 2.90mm

Lead Free :

Lead Free

Mixed Contacts :

No

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

RoHS Compliant

Contact Finish - Post :

Tin

Reference Standard :

UL

Filter Feature :

No

Length :

50.72mm

UL Flammability Code :

94V-0

Pitch - Mating :

0.100 2.54mm

Stack Height (Mating) :

11.04mm

Series :

Dubox™

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Board

Contact Finish - Mating :

Gold

Applications :

Automotive, General Purpose, Industrial, Telecommunications

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Reliability :

COMMERCIAL

Number Of PCB Rows :

1

Published :

2014

Number of Positions Loaded :

All

Depth :

2.54mm

Contact Resistance :

20mOhm

Mounting Type :

Through Hole

Rated Current (Signal) :

2A

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.275 6.99mm

Housing Color :

Blue

IEC Conformance :

No

Number of Positions :

20

Plating Thickness :

30μin

Contact Material :

Phosphor Bronze

Fastening Type :

Push-Pull

Polarization Key :

POLARIZED HOUSING

Current Rating :

3A

Insulation Resistance :

100GOhm

Factory Lead Time :

9 Weeks

Pbfree Code :

yes

DIN Conformance :

No

Contact Finish Thickness - Post :

78.7μin 2.00μm

Number of Rows :

1

Insulation Material :

Thermoplastic, Glass Filled

JESD-609 Code :

e3

Min Operating Temperature :

-65°C

REACH SVHC :

No SVHC

Orientation :

Straight

MIL Conformance :

No

Contact Type :

Female Socket

Connector Type :

Receptacle

Packaging :

Tube

Termination :

Solder

ECCN Code :

EAR99

Max Operating Temperature :

125°C

Mount :

Through Hole

Contact Shape :

Square

Housing Material :

Thermoplastic

Stack Height :

7mm

HTS Code :

8536.69.40.40

Number of Conductors :

ONE

Max Voltage Rating (AC) :

1kV
