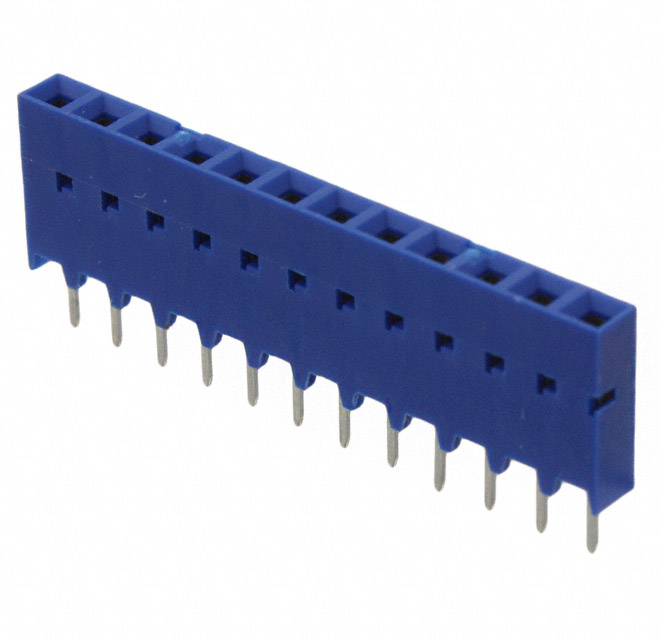

76341-312LF

Manufacturer :

Amphenol Communications Solutions

Product Category :

Headers, Receptacles, Female Sockets

Contact Length - Post :

0.114 2.90mm

Contact Shape :

Square

Termination :

Solder

Number of Poles :

12

Plating Thickness :

30μin

Min Operating Temperature :

-65°C

Number of Rows :

1

Series :

Dubox™

Number Of PCB Rows :

1

Reference Standard :

UL

Contact Material :

Phosphor Bronze

Mounting Type :

Through Hole

Contact Finish - Post :

Tin

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

Fastening Type :

Push-Pull

RoHS Status :

RoHS Compliant

Contact Finish - Mating :

Gold

DIN Conformance :

No

Max Operating Temperature :

125°C

ECCN Code :

EAR99

JESD-609 Code :

e3

Applications :

Automotive, General Purpose, Industrial, Telecommunications

Max Voltage Rating (AC) :

1kV

Orientation :

Straight

Lead Pitch :

2.54mm

Stack Height (Mating) :

11.04mm

HTS Code :

8536.69.40.40

Contact Type :

Female Socket

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Style :

Board to Board

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Mixed Contacts :

No

Length :

30.4mm

Material Flammability Rating :

UL94 V-0

Rated Current (Signal) :

2A

Housing Material :

Thermoplastic

Insulation Resistance :

100GOhm

Number of Positions Loaded :

All

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Lead Free :

Lead Free

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

20mOhm

Voltage - Rated :

1kV

Contact Finish Thickness - Post :

78.7μin 2.00μm

Insulation Height :

0.275 6.99mm

Number of Conductors :

ONE

Reliability :

COMMERCIAL

MIL Conformance :

No

Factory Lead Time :

9 Weeks

Depth :

2.54mm

Mount :

Through Hole

Published :

2011

Insulation Material :

Thermoplastic, Glass Filled

Packaging :

Tube

Connector Type :

Receptacle

UL Flammability Code :

94V-0

Housing Color :

Blue

Current Rating :

3A
