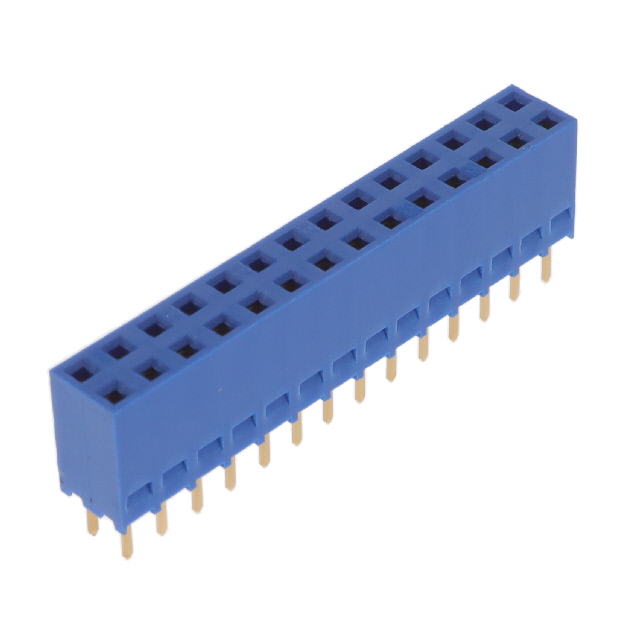

76314-114LF
Or copy the link below:
- Mfr.Part #
- 76314-114LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 28POS 0.1 GOLD PCB
- Stock
- 87
- In Stock ：
- 87
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Housing Color :
- Blue
- Housing Material :
- Polyester
- Contact Shape :
- Square
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Fastening Type :
- Push-Pull
- Contact Plating :
- Gold, Tin
- Style :
- Board to Board or Cable
- Factory Lead Time :
- 9 Weeks
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Color :
- Blue
- RoHS Status :
- RoHS Compliant
- Depth :
- 5.08mm
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.135 3.43mm
- Contact Finish - Post :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Gender :
- FEMALE
- Mounting Type :
- Through Hole
- Connector Type :
- Receptacle
- Contact Type :
- Female Socket
- Orientation :
- Straight
- Number of Rows :
- 2
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Packaging :
- Tube
- Pitch :
- 2.54mm
- Number of Positions :
- 28
- Series :
- BergCon®
- Number of Contacts :
- 28
- Mount :
- Through Hole
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Color :
- Blue
- Contact Material :
- Brass
- Contact Gender :
- FEMALE
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.335 8.51mm
- Length :
- 35.56mm
- Datasheets
- 76314-114LF
76314-114LF Documents
2 Rows Receptacle Solder Brass Through Hole Tube Gold Thermoplastic, Polyester, Glass Filled 28 Positions Female Socket
76314-114LF Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the BergCon® Series of products.The part is mounted by Through Hole.
76314-114LF Features
BergCon® series
76314-114LF Applications
There are a lot of Amphenol ICC (FCI)
76314-114LF Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
