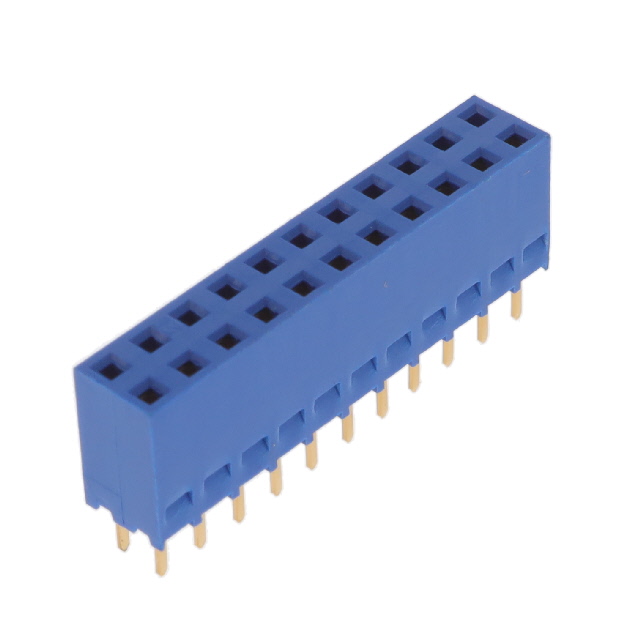

76314-111LF
Or copy the link below:
- Mfr.Part #
- 76314-111LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 22POS 0.1 GOLD PCB
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Number of Contacts :
- 22
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Termination :
- Solder
- Series :
- BergCon®
- Length :
- 27.94mm
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Pitch :
- 2.54mm
- RoHS Status :
- RoHS Compliant
- Orientation :
- Straight
- Contact Length - Post :
- 0.135 3.43mm
- Published :
- 2006
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 9 Weeks
- Connector Type :
- Receptacle
- Pitch - Mating :
- 0.100 2.54mm
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Blue
- Contact Finish - Mating :
- Gold
- Contact Material :
- Brass
- Style :
- Board to Board or Cable
- Insulation Color :
- Blue
- Insulation Height :
- 0.335 8.51mm
- Number of Positions :
- 22
- Color :
- Blue
- Contact Finish - Post :
- Tin
- Contact Type :
- Female Socket
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Plating :
- Gold
- Depth :
- 5.08mm
- Contact Shape :
- Square
- Packaging :
- Tube
- Mount :
- Through Hole
- Material Flammability Rating :
- UL94 V-0
- Datasheets
- 76314-111LF
2 Rows Receptacle Solder Brass Through Hole Tube Gold Thermoplastic, Polyester, Glass Filled 22 Positions Female Socket
76314-111LF Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the BergCon® Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.
76314-111LF Features
BergCon® series
76314-111LF Applications
There are a lot of Amphenol ICC (FCI)
76314-111LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
