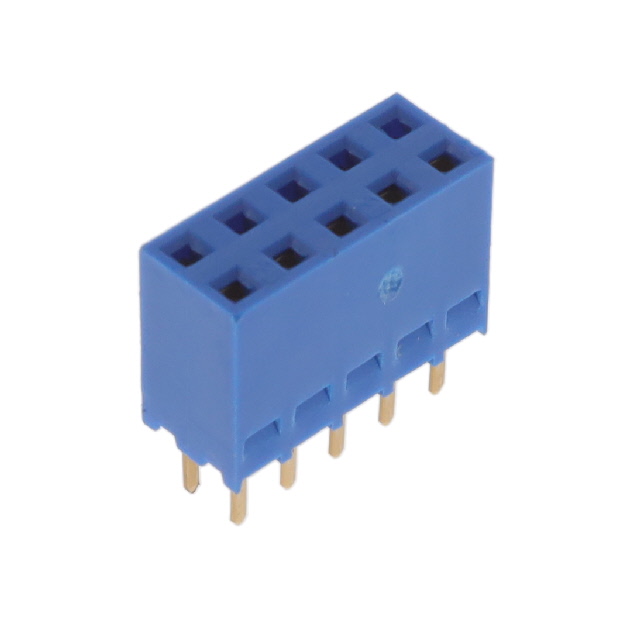

76314-105LF
Or copy the link below:
- Mfr.Part #
- 76314-105LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 10POS 0.1 GOLD PCB
- Stock
- 66
- In Stock ：
- 66
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Housing Color :
- Blue
- Depth :
- 5.08mm
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Female Socket
- Style :
- Board to Board or Cable
- Color :
- Blue
- Termination :
- Solder
- Fastening Type :
- Push-Pull
- Pitch :
- 2.54mm
- Insulation Height :
- 0.335 8.51mm
- Published :
- 2006
- Orientation :
- Straight
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Number of Rows :
- 2
- Packaging :
- Tube
- Contact Finish - Post :
- Tin
- Series :
- BergCon®
- Contact Plating :
- Gold, Tin
- Gender :
- FEMALE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Positions :
- 10
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Receptacle
- Insulation Color :
- Blue
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Factory Lead Time :
- 9 Weeks
- Housing Material :
- Thermoplastic
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Through Hole
- Contact Finish - Mating :
- Gold
- Mounting Type :
- Through Hole
- Contact Material :
- Brass
- Length :
- 12.7mm
- Number of Contacts :
- 10
- Contact Length - Post :
- 0.135 3.43mm
- Datasheets
- 76314-105LF
76314-105LF Documents
2 Rows Receptacle Solder Brass Through Hole Tube Gold Thermoplastic, Polyester, Glass Filled 10 Positions Female Socket
76314-105LF Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the BergCon® Series.By Through Hole, the part is mounted.
76314-105LF Features
BergCon® series
76314-105LF Applications
There are a lot of Amphenol ICC (FCI)
76314-105LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
