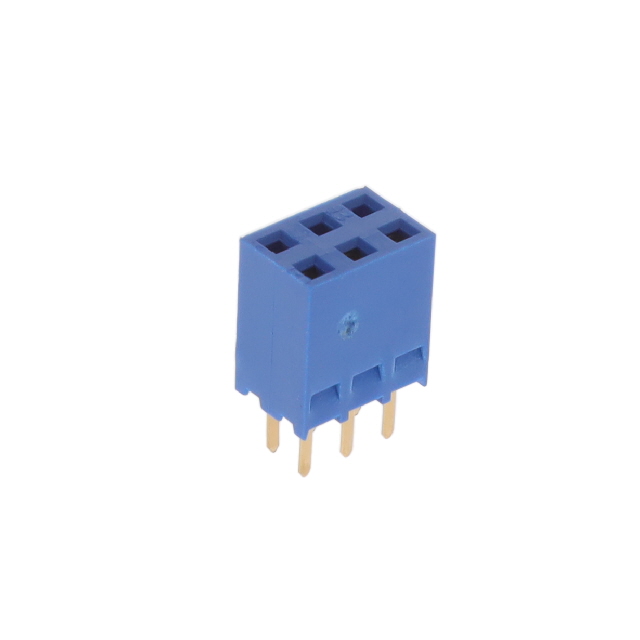

76314-103LF
Or copy the link below:
- Mfr.Part #
- 76314-103LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS 0.1 GOLD PCB
- Stock
- 486
- In Stock ：
- 486
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Pitch :
- 2.54mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Number of Contacts :
- 6
- Contact Gender :
- FEMALE
- Fastening Type :
- Push-Pull
- Number of Positions Loaded :
- All
- Length :
- 7.62mm
- Contact Finish - Mating :
- Gold
- Contact Length - Post :
- 0.135 3.43mm
- Termination :
- Solder
- Style :
- Board to Board or Cable
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Orientation :
- Straight
- Connector Type :
- Receptacle
- Insulation Color :
- Blue
- Number of Positions :
- 6
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Gender :
- FEMALE
- Insulation Height :
- 0.335 8.51mm
- Factory Lead Time :
- 9 Weeks
- Housing Color :
- Blue
- Number of Rows :
- 2
- Series :
- BergCon®
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Radiation Hardening :
- No
- Mounting Type :
- Through Hole
- Housing Material :
- Polyester
- Depth :
- 5.08mm
- Contact Material :
- Brass
- Color :
- Blue
- Packaging :
- Bulk
- Contact Type :
- Female Socket
- Contact Shape :
- Square
- Datasheets
- 76314-103LF
2 Rows Receptacle Solder Brass Through Hole Bulk Gold Thermoplastic, Polyester, Glass Filled 6 Positions Female Socket
76314-103LF Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the BergCon® Series of products.Through Hole mounts the part.
76314-103LF Features
BergCon® series
76314-103LF Applications
There are a lot of Amphenol ICC (FCI)
76314-103LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
