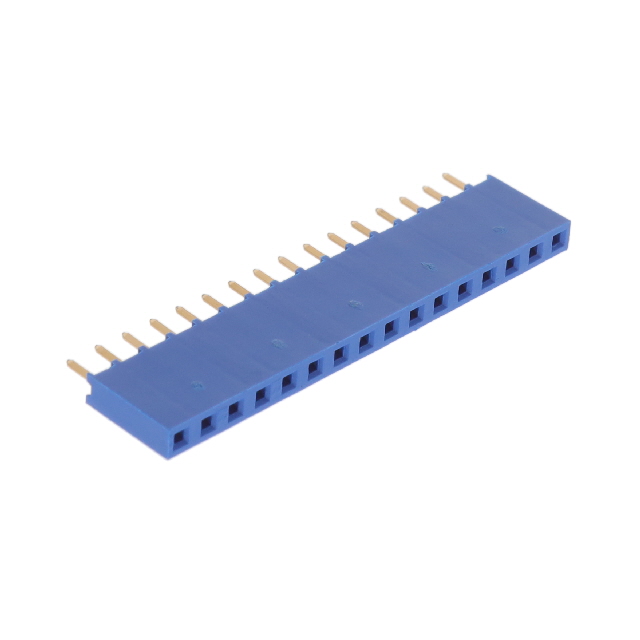

76308-116LF
Or copy the link below:
- Mfr.Part #
- 76308-116LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 16POS 0.1 GOLD PCB
- Stock
- 60
- In Stock ：
- 60
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Depth :
- 2.54mm
- Color :
- Blue
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Post :
- Tin
- Pitch :
- 2.54mm
- Published :
- 2006
- Number of Positions :
- 16
- Gender :
- FEMALE
- Contact Material :
- Brass
- Insulation Material :
- Thermoplastic, Polyester, Glass Filled
- Insulation Color :
- Blue
- Number of Positions Loaded :
- All
- Contact Plating :
- Gold
- Number of Rows :
- 1
- Insulation Height :
- 0.335 8.51mm
- Radiation Hardening :
- No
- Fastening Type :
- Push-Pull
- Contact Shape :
- Square
- Contact Length - Post :
- 0.135 3.43mm
- Contact Type :
- Female Socket
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Board or Cable
- Contact Finish - Mating :
- Gold
- Pitch - Mating :
- 0.100 2.54mm
- Length :
- 40.64mm
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Connector Type :
- Receptacle
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Factory Lead Time :
- 9 Weeks
- Packaging :
- Tube
- Housing Material :
- Polyester
- Series :
- BergCon®
- Orientation :
- Straight
- Number of Contacts :
- 16
- Datasheets
- 76308-116LF
76308-116LF Documents
1 Rows Receptacle Solder Brass Through Hole Tube Gold Thermoplastic, Polyester, Glass Filled 16 Positions Female Socket
76308-116LF Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Tube case is used.It belongs to the BergCon® Series of products.The part is mounted by Through Hole.
76308-116LF Features
BergCon® series
76308-116LF Applications
There are a lot of Amphenol ICC (FCI)
76308-116LF Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
