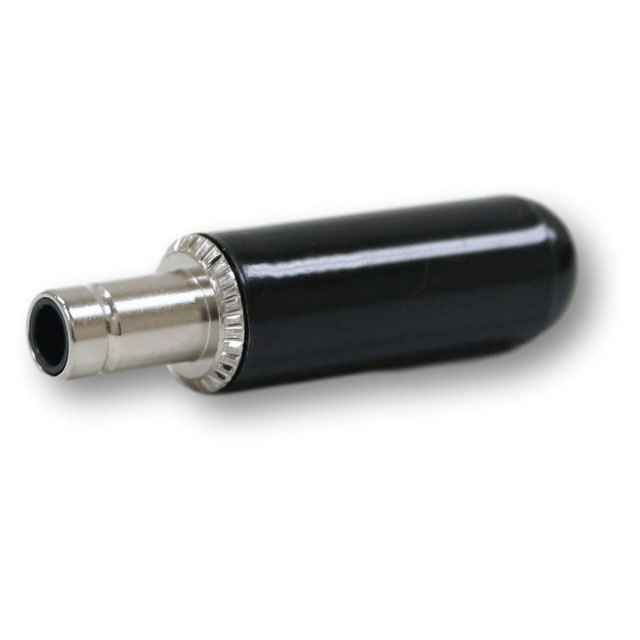

762Z

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Current Rating (Max) :

5(A)

Voltage Rating Max :

24VDC

Mounting Feature :

-

RoHS :

Details

Mounting Type :

Free Hanging (In-Line)

Voltage Rating :

24 VDC

Number of Ports :

1(Port)

Pin Diameter :

-

Mating Length/Depth :

0.374 (9.50mm)

Current Rating (Amps) :

5 A

Ingress Protection :

-

Series :

-

Outside Contact Diameter :

5.5 mm

Body Orientation :

Straight

Insulation Color :

Red

Includes :

-

Product Depth (mm) :

Not Required(mm)

Gender :

PL

Type :

DC Power

Termination Style :

Solder

IP Rating :

-

Current Rating :

5 A

Product :

Plugs

Product Diameter (mm) :

9.5(mm)

Itar Registered :

Unavailable

ECCN :

EAR99

Product Length (mm) :

36.1(mm)

Package :

Bulk

Number of Contacts :

2(POS)

Packaging :

Bulk

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Housing Material :

Thermoplastic (TP)

Number of Terminals :

2

Features :

Cable Clamp

Operating Temperature :

-

Mounting Style :

CABLE

Body Color :

Silver, Black

Termination Method :

Solder

Termination :

Solder Eyelet(s)

Connector Type :

PLUG

Actual Diameter :

0.083 (2.10mm ID), 0.217 (5.50mm OD)

Contact Material :

COPPER ALLOY

Material Flammability Rating :

-

Product Status :

Active

Thread Size :

-

Inside Contact Diameter :

2.1 mm

Voltage - Rated :

24VDC

Contact Plating :

Nickel

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Body Material :

COPPER ALLOY

Product Height (mm) :

Not Required(mm)

Internal Switch(s) :

Does Not Contain Switch

Mounting Angle :

Straight

Shielding :

Unshielded

Contact Material - Plating :

Tin
