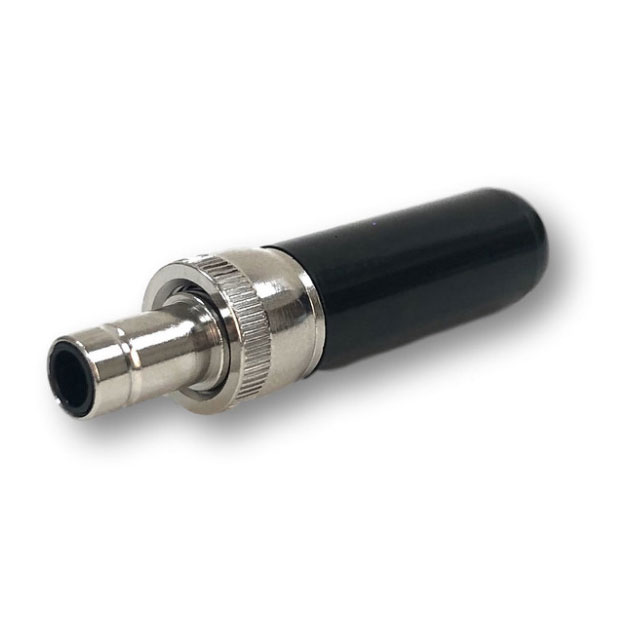

762KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Mounting Type :

Free Hanging (In-Line)

RoHS :

Details

Voltage - Rated :

24VDC

Body Material :

Brass

Internal Switch(s) :

Does Not Contain Switch

Ingress Protection :

-

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Current Rating :

5 A

Voltage Rating Max :

24VDC

Current Rating (Max) :

5(A)

Mounting Style :

CABLE

Product Status :

Active

Product Diameter (mm) :

9.5(mm)

Termination :

Solder Eyelet(s)

Type :

DC Power

Contact Material - Plating :

Tin

Contact Plating :

Nickel

Actual Diameter :

0.083 (2.10mm ID), 0.217 (5.50mm OD)

Includes :

-

Outside Contact Diameter :

9.5 mm

Insulation Color :

Red

Product :

Plugs

Termination Style :

Solder

Packaging :

Bulk

Mating Length/Depth :

0.374 (9.50mm)

Material Flammability Rating :

-

Shielding :

Unshielded

Termination Method :

Solder

Product Depth (mm) :

Not Required(mm)

Voltage Rating :

24 VDC

Housing Material :

Thermoplastic (TP)

Series :

-

Number of Ports :

1(Port)

Body Color :

Silver, Black

Product Length (mm) :

43.2(mm)

Inside Contact Diameter :

2.1 mm

ECCN :

EAR99

Current Rating (Amps) :

5 A

Gender :

PL

Connector Type :

PLUG

Thread Size :

-

Product Height (mm) :

Not Required(mm)

Operating Temperature :

-

IP Rating :

-

Body Orientation :

Straight

Pin Diameter :

-

Mounting Angle :

Straight

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Contact Material :

COPPER ALLOY

Features :

Cable Clamp, Thread Lock

Mounting Feature :

-

Itar Registered :

Unavailable

Number of Terminals :

2

Package :

Bulk

Number of Contacts :

2(POS)
