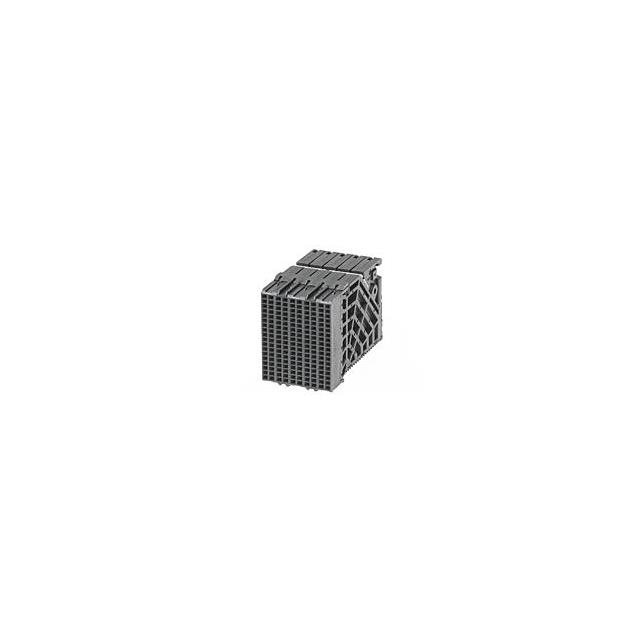

76290-1020
Or copy the link below:
- Mfr.Part #
- 76290-1020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- IMPACT ORTHO DC 6X10 OPEN SN
- Stock
- 130
- In Stock ：
- 130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Number of Pairs :
- 6
- Number of Columns :
- 10
- Series :
- 76290
- Pbfree Code :
- yes
- Product Depth (mm) :
- 37.3(mm)
- Voltage Rating :
- 30 VAC
- Voltage Rating Max :
- 30VDC/30VAC
- Impedance :
- 100 Ω
- Housing Material :
- Thermoplastic
- Minimum Operating Temperature :
- - 55 C
- RoHS :
- Details
- MIL Conformance :
- No
- Maximum Operating Temperature :
- + 85 C
- Body Orientation :
- RIGHT ANGLE
- Mounting Style :
- Through Hole
- Data Rate :
- 25 Gbps
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Product Height (mm) :
- 27.5(mm)
- Contact Plating :
- Gold
- Contact Finish :
- Gold
- Number of Positions Loaded :
- All
- Current Rating :
- 750 mA
- UL Flammability Code :
- 94V-0
- Color :
- Black
- Connector Usage :
- -
- Connector Style :
- Impact
- Number of Circuits :
- 180
- Brand :
- Molex
- Voltage Rating (AC) :
- 30 V
- Filter Feature :
- No
- Package :
- Box
- Mounting Angle :
- RIGHT ANGLE
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Contact Layout, Typical :
- -
- Number of Rows :
- 18
- Contact Material :
- COPPER ALLOY
- Operating Temp Range :
- -55C to 85C
- Product Length (mm) :
- 20.25(mm)
- Gender :
- Receptacle
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- Packaging :
- Tray
- Mixed Contacts :
- No
- Current Rating (Max) :
- 0.75/Contact(A)
- Material :
- Thermoplastic
- Manufacturer :
- Molex
- Termination :
- Press-Fit
- Termination Method :
- Press Fit
- Features :
- -
- Product Category :
- High Speed / Modular Connectors
- Orientation :
- RIGHT ANGLE
- Subcategory :
- Backplane Connectors
- Factory Lead Time :
- 11 Weeks
- Shielding :
- Unshielded
- Termination Type :
- Press Fit
- Contact Gender :
- FEMALE
- HTS Code :
- 8536.69.40.40
- Pitch :
- 1.9000, 2.1500 mm
- Reach Compliance Code :
- Compliant
- Type :
- Daughter Card
- Total Number of Contacts :
- 120
- Base/Housing Material :
- LCP (Liquid Crystal Polymer)
- Connector Type :
- Receptacle, Female Sockets
- Plating :
- Tin
- IEC Conformance :
- No
- ECCN Code :
- EAR99
- Tradename :
- Impact
- Terminal Pitch :
- 1.9 mm
- Number of Contacts :
- 180 POS
- Product Type :
- High Speed / Modular Connectors
- Operating Temperature :
- -55 to 85 °C
- Material Flammability Rating :
- UL94 V-0
- Product Status :
- Active
- Current Rating (Amps) :
- -
- Mounting :
- Through Hole
- Pin Count :
- 180
- DIN Conformance :
- No
- Product Length :
- 20.25 mm
- Manufacturer Lifecycle Status :
- ACTIVE (Last Updated: 2 years ago)
- Number of Contact Rows :
- 18
- Number of Positions :
- 180 Position
- Termination Style :
- Through Hole
- Lifecycle Status :
- Production (Last Updated: 2 years ago)
- ELV :
- Compliant
- Country of Origin :
- US
