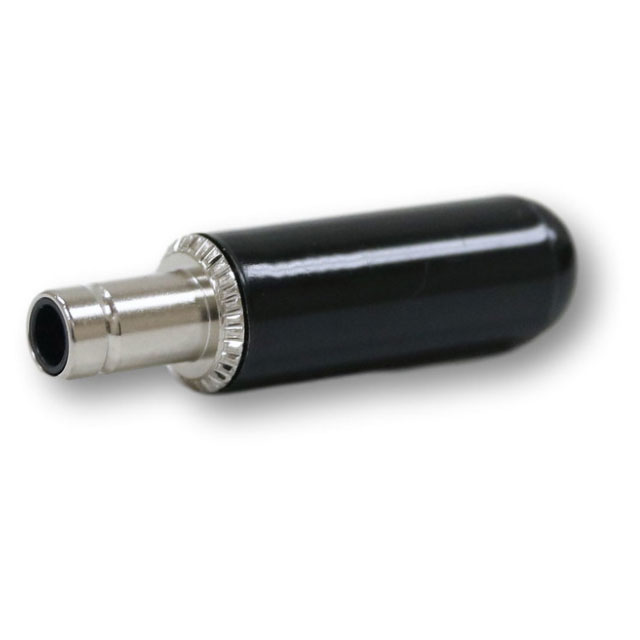

760Z

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Gender :

PL

Current Rating :

5 A

Operating Temperature :

-

Outside Contact Diameter :

5.5 mm

Series :

-

Color :

Black

Contact Plating :

Nickel

Product Depth (mm) :

Not Required(mm)

Pin Diameter :

-

RoHS :

Details

Mounting Style :

CABLE

ECCN :

EAR99

Shielding :

Unshielded

Mounting Angle :

Straight

Termination :

Solder Eyelet(s)

Body Color :

Silver, Black

IP Rating :

-

Body Material :

COPPER ALLOY

Mating Length/Depth :

0.374 (9.50mm)

Inside Contact Diameter :

2.5 mm

Internal Switch(s) :

Does Not Contain Switch

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Product Diameter (mm) :

9.5(mm)

Material Flammability Rating :

-

Includes :

-

Thread Size :

-

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Current Rating (Amps) :

5 A

Packaging :

Bulk

Body Orientation :

Straight

Connector Type :

PLUG

Mounting Feature :

-

Number of Terminals :

2

Termination Method :

Solder

Package :

Bulk

Ingress Protection :

-

Contact Material :

COPPER ALLOY

Insulation Color :

Black

Voltage Rating :

24 VDC

Voltage - Rated :

24VDC

Termination Style :

Solder

Product Length (mm) :

36.1(mm)

Product :

Plugs

Product Height (mm) :

Not Required(mm)

Features :

Cable Clamp

Product Status :

Active

Number of Ports :

1(Port)

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Voltage Rating Max :

24VDC

Mounting Type :

Free Hanging (In-Line)

Current Rating (Max) :

5(A)

Type :

DC Power

Contact Material - Plating :

Tin

Itar Registered :

Unavailable

Number of Contacts :

2(POS)

Housing Material :

Thermoplastic (TP)
