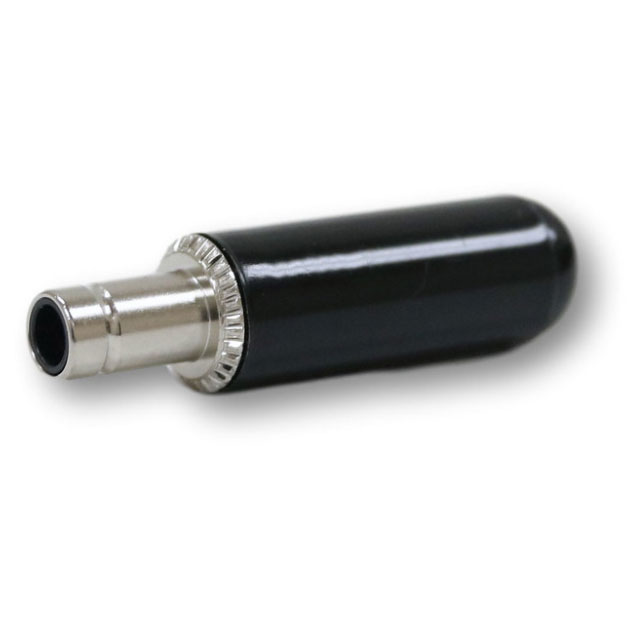

760HZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Number of Contacts :

2(POS)

Body Color :

Silver, Black

IP Rating :

-

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Contact Material - Plating :

Tin

Mounting Angle :

Straight

Termination :

Solder Eyelet(s)

Mounting Feature :

-

Termination Style :

Solder

Housing Material :

Thermoplastic (TP)

Insulation Color :

Black

Packaging :

Bulk

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Itar Registered :

Unavailable

Includes :

-

Outside Contact Diameter :

9.5 mm

Pin Diameter :

-

Mounting Style :

CABLE

Operating Temperature :

-

Current Rating (Amps) :

7.5 A

Product Depth (mm) :

Not Required(mm)

Number of Ports :

1(Port)

Shielding :

Unshielded

Thread Size :

-

Voltage Rating :

24 VDC

Package :

Bulk

RoHS :

Details

Current Rating (Max) :

7.5(A)

Color :

Black

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

ECCN :

EAR99

Connector Type :

PLUG

Material Flammability Rating :

-

Features :

Cable Clamp

Current Rating :

7.5 A

Product :

Plugs

Termination Method :

Solder

Body Orientation :

Straight

Product Height (mm) :

Not Required(mm)

Product Status :

Active

Gender :

PL

Inside Contact Diameter :

2.5 mm

Mounting Type :

Free Hanging (In-Line)

Mating Length/Depth :

0.374 (9.50mm)

Product Diameter (mm) :

9.5(mm)

Maximum Operating Temperature :

+ 105 C

Contact Plating :

Nickel

Series :

-

Body Material :

COPPER ALLOY

Product Length (mm) :

36.1(mm)

Internal Switch(s) :

Does Not Contain Switch

Number of Terminals :

2

Contact Material :

COPPER ALLOY

Voltage Rating Max :

24VDC

Type :

DC Power

Ingress Protection :

-

Voltage - Rated :

24VDC
