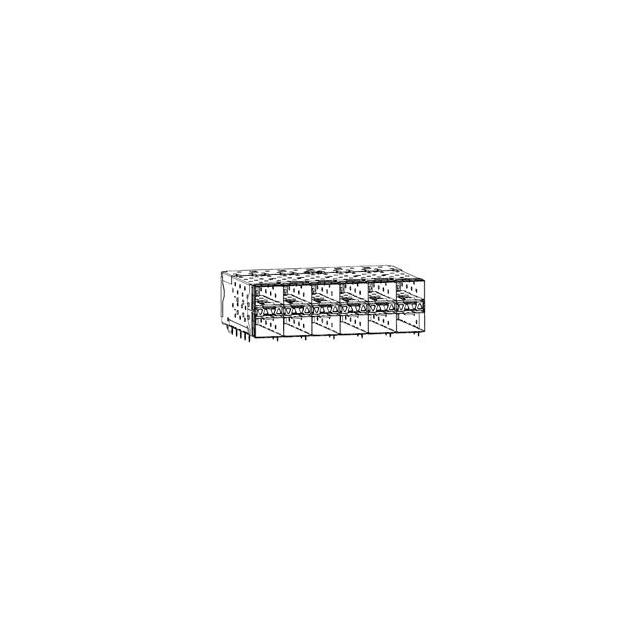

76048-5002

Manufacturer :

Molex

Product Category :

Pluggable Connector Assemblies

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Housing Material :

Thermoplastic

Termination :

Solder

IP Rating :

-

Product Status :

Active

RoHS :

Compliant

Product Depth (mm) :

63.25(mm)

Contact Material :

COPPER ALLOY

Orientation :

RIGHT ANGLE

Family :

76048

Pitch (mm) :

1.6(mm)

Application :

Module-to-Board

Current Rating (Max) :

0.5/Contact(A)

Lifecycle Status :

Production (Last Updated: 2 years ago)

Product Height (mm) :

25.8(mm)

Panel Mount :

No

Housing Color :

Black

Reach Compliance Code :

Compliant

Termination Style :

Through Hole

Operating Temp Range :

-40C to 85C

Number of Circuits :

240

Color :

Black

Termination Method :

Press Fit

Maximum Operating Temperature :

+ 85 C

Min Operating Temperature :

-40 °C

Minimum Operating Temperature :

- 40 C

Number of Positions :

240

Number of Ports :

12(Port)

Flammability Rating :

UL94 V-0

Series :

*

ELV :

Compliant

Halogen Free :

Low Halogen

Manufacturer :

Molex

Shielded :

yes

Country of Origin :

US

Mounting Angle :

RIGHT ANGLE

Number of Terminals :

240

Positions Loaded :

240

Voltage Rating Max :

120VDC/120VAC

Product :

SFP Connectors

Package :

Box

Plating :

Tin

Voltage Rating :

120 V

Pitch :

800 µm

Number of Rows :

2

Body Orientation :

RIGHT ANGLE

Type :

SFP+

Product Length (mm) :

87.04(mm)

Shielding :

Shielded

Voltage Rating (AC) :

120 V

Max Operating Temperature :

85 °C

Component Type :

Receptacle

Gender :

FEMALE

Packaging :

Tray

Current Rating :

500 mA

Mounting Style :

Through Hole

Number of Contacts :

240(POS)

Contact Plating :

Gold Over Nickel
