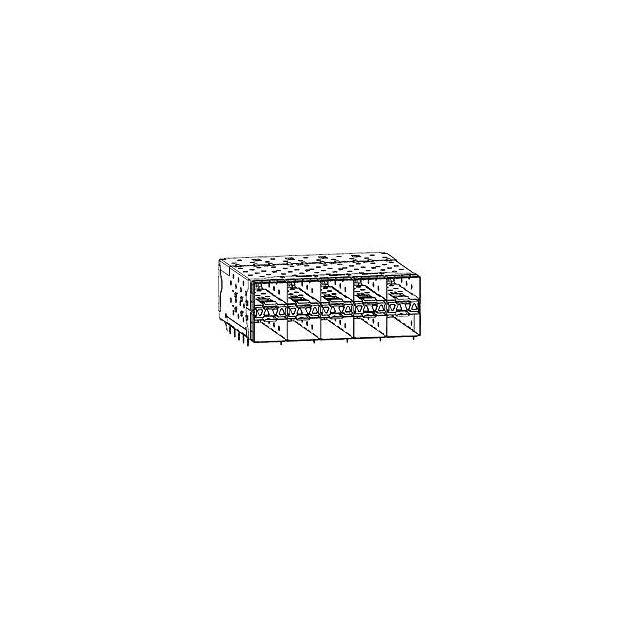

76047-5002

Manufacturer :

Molex

Product Category :

Pluggable Connector Assemblies

Contact Material :

COPPER ALLOY

Number of Ports :

10(Port)

Positions Loaded :

200

Color :

Black

Product Height (mm) :

25.8(mm)

Contact Plating :

Gold Over Nickel

Package :

Box

Mounting Style :

Through Hole

Family :

76047

Housing Color :

Black

Shielded :

yes

Number of Contacts :

200(POS)

Reach Compliance Code :

Compliant

Number of Rows :

2

RoHS :

Compliant

Current Rating :

500 mA

Product :

Connectors

Orientation :

RIGHT ANGLE

Voltage Rating :

120 V

Housing Material :

Thermoplastic

Shielding :

Shielded

Body Orientation :

RIGHT ANGLE

Halogen Free :

Low Halogen

Voltage Rating Max :

120VDC/120VAC

Termination Style :

Through Hole

Packaging :

Tray

Product Length (mm) :

72.8(mm)

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Gender :

FEMALE

Number of Circuits :

200

Pitch (mm) :

1.6(mm)

Flammability Rating :

UL94 V-0

Number of Positions :

200

Product Status :

Active

Series :

*

Termination :

Solder

Lifecycle Status :

Production (Last Updated: 2 years ago)

Panel Mount :

No

Number of Terminals :

200

Operating Temp Range :

-40C to 85C

Component Type :

Receptacle

Country of Origin :

US

Mounting Angle :

RIGHT ANGLE

Maximum Operating Temperature :

+ 85 C

Type :

SFP+

Manufacturer :

Molex

Application :

Module-to-Board

Min Operating Temperature :

-40 °C

Pitch :

800 µm

Max Operating Temperature :

85 °C

ELV :

Compliant

Termination Method :

Press Fit

Voltage Rating (AC) :

120 V

Product Depth (mm) :

63.25(mm)

Current Rating (Max) :

0.5/Contact(A)

Plating :

Tin

Minimum Operating Temperature :

- 40 C
