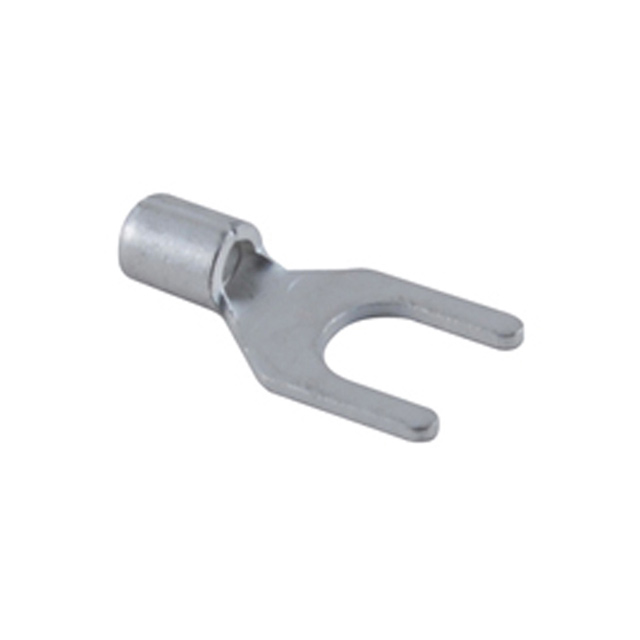

76-ST16-04L

Manufacturer :

NTE Electronics, Inc.

Product Category :

Spade Connectors

Operating Temperature :

-65°C ~ 175°C

Termination :

Crimp

Insulation Diameter :

-

Tolerance :

±0.1%

Base Product Number :

RNC55

Size / Dimension :

0.094 Dia x 0.250 L (2.39mm x 6.35mm)

Package :

Bulk

Material - Insulation :

-

Stud/Tab Size :

4 Stud

Series :

Military, MIL-PRF-55182/01, RNC55

Features :

Military, Moisture Resistant, Weldable

Composition :

Metal Film

Approvals :

cUL

Length - Termination :

-

Power (Watts) :

0.125W, 1/8W

Supplier Device Package :

Axial

Terminal Type :

Spade/Fork

Length - Overall :

0.630 (16.00mm)

Resistance :

866 kOhms

Insulated :

No (Non-Insulated)

Package / Case :

Axial

Contact Material :

Copper

Stud Size :

#4

Length - Ring Center to Termination :

-

Temperature Coefficient :

±25ppm/°C

Tongue Inside Opening :

-

Width - Outer Edges :

0.228 (5.80mm)

Material :

Tin Plated Copper

Terminal Material :

Copper

Failure Rate :

R (0.01%)

Mounting Type :

Free Hanging (In-Line)

Product Status :

Active

Color :

-

Height - Seated (Max) :

-

Package Quantity :

50

Wire Size :

16-14 AWG

Wire Strip Length :

0.2

Wire Size (AWG) :

16 AWG, 15 AWG, 14 AWG

Manufacturer :

NTE Electronics

Wire Gauge :

14-16 AWG

Insulation :

Non-Insulated

Number of Terminations :

2

Contact Finish :

Electro-Tin
