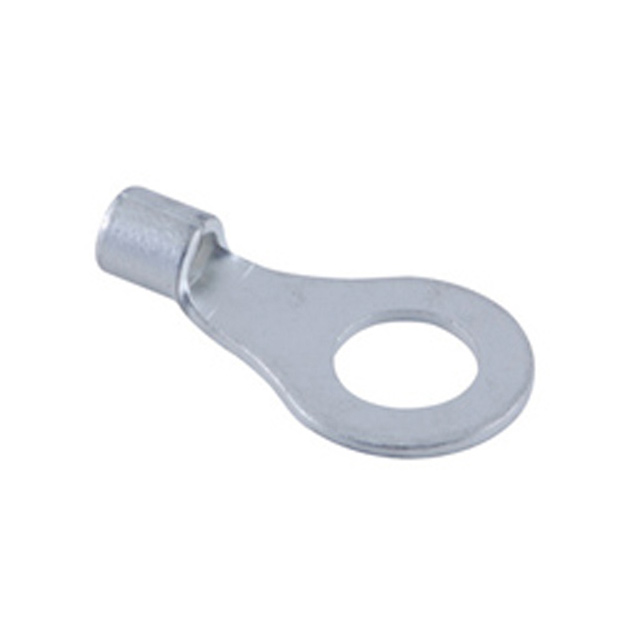

76-RT22-08L
Or copy the link below:
- Mfr.Part #
- 76-RT22-08L
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- NON INS RING TERM 22-18WG 50 BAG
- Stock
- 8,709
- In Stock ：
- 8,709
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Ring Connectors
- Material :
- Tin Plated Copper
- Features :
- Brazed Seam
- Mounting Type :
- Free Hanging (In-Line)
- Insulation Diameter :
- -
- Manufacturer :
- NTE Electronics
- Series :
- -
- Wire Gauge :
- 18-22 AWG
- Wire Strip Length :
- 0.2
- Termination :
- Crimp
- Stud/Tab Size :
- 8 Stud
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Terminal Type :
- Ring
- Contact Material :
- Copper
- Package Quantity :
- 50
- Wire Size :
- 22-18 AWG
- Terminal Material :
- Copper
- Thickness :
- -
- Length - Overall :
- 0.772 (19.61mm)
- Package :
- Bag
- Color :
- -
- Width - Outer Edges :
- 0.260 (6.60mm)
- Material - Insulation :
- -
- Insulated :
- Non-Insulated
- Contact Finish :
- Electro-Tin
- Approvals :
- cUL
- Stud Size :
- #8
- Insulation :
- Non-Insulated
- Product Status :
- Active
- Datasheets
- 76-RT22-08L
