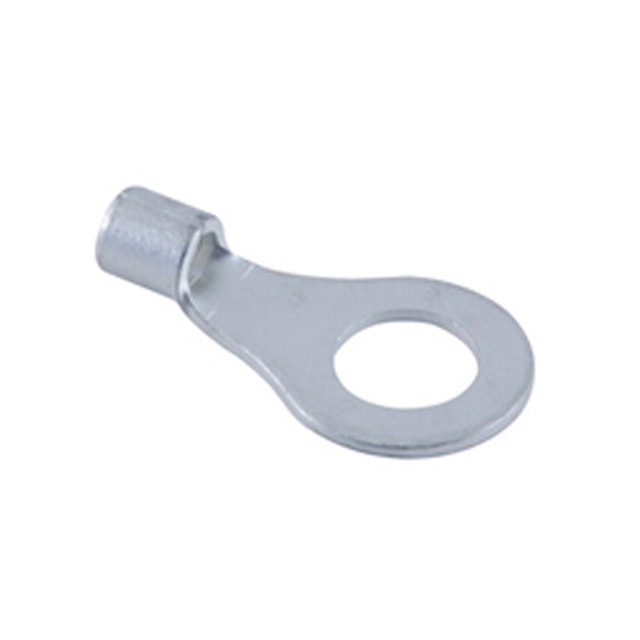

76-RT22-06L

Manufacturer :

NTE Electronics, Inc.

Product Category :

Ring Connectors

Material - Core :

Ferrite

Current Rating (Amps) :

255 mA

Insulation Diameter :

-

Supplier Device Package :

Axial

Inductance Frequency - Test :

2.5 MHz

Inductance :

18 µH

Mounting Type :

Through Hole

Height - Seated (Max) :

-

Approvals :

cUL

Material - Insulation :

-

Package Quantity :

50

Features :

-

Terminal Material :

Copper

Product Status :

Active

Shielding :

Unshielded

Tolerance :

±20%

Terminal Type :

Ring

Size / Dimension :

0.190 Dia x 0.441 L (4.82mm x 11.20mm)

Current - Saturation (Isat) :

-

Wire Strip Length :

0.2

Package / Case :

Axial

Wire Size :

22-18 AWG

Thickness :

-

Wire Size (AWG) :

22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG

Width - Outer Edges :

0.217 (5.50mm)

Wire Gauge :

18-22 AWG

Contact Material :

Copper

Termination :

Crimp

DC Resistance (DCR) :

2Ohm Max

Length - Overall :

0.461 (11.71mm)

Color :

-

Insulated :

Non-Insulated

Type :

Molded

Stud/Tab Size :

6 Stud

Operating Temperature :

-55°C ~ 125°C

Package :

Tape and Reel (TR)

Frequency - Self Resonant :

30MHz

Q @ Freq :

60 @ 2.5MHz

Ratings :

-

Manufacturer :

NTE Electronics

Material :

Tin Plated Copper

Series :

CTM3F

Contact Finish :

Electro-Tin

Stud Size :

#6

Insulation :

Non-Insulated
