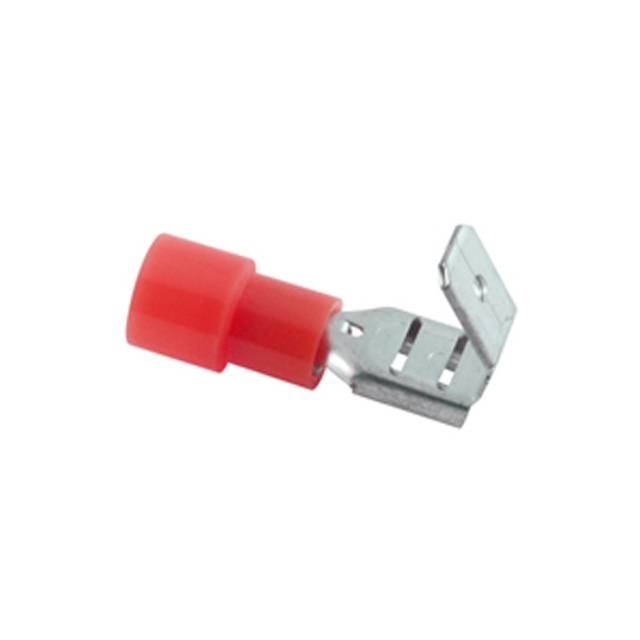

76-NIPD22
Or copy the link below:
- Mfr.Part #
- 76-NIPD22
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- NYLON INS PIGGYBACK DISC
- Stock
- 2,808
- In Stock ：
- 2,808
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Material :
- Tin Plated Brass
- Termination :
- Crimp
- Contact Material :
- Brass
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Wire Size :
- 22-18 AWG
- Insulation :
- Non-Mating End Insulated
- Insulated :
- Insulated
- Package :
- Bag
- Manufacturer :
- NTE Electronics
- Color :
- Red
- Gender :
- Female and Male
- Terminal Type :
- Disconnect - Piggyback
- Package Quantity :
- 50
- Insulation Diameter :
- -
- Terminal Material :
- Brass
- Product Status :
- Active
- Contact Finish :
- Electro-Tin
- Insulation Material :
- Nylon
- Wire Gauge :
- 18-22 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Features :
- -
- Tab Width :
- 0.250 (6.35mm)
- Series :
- NEMA
- Tab Thickness :
- 0.032 (0.81mm)
- Length - Overall :
- 0.866 (22.00mm)
- Tab Size :
- 0.25 x 0.032
- Datasheets
- 76-NIPD22
