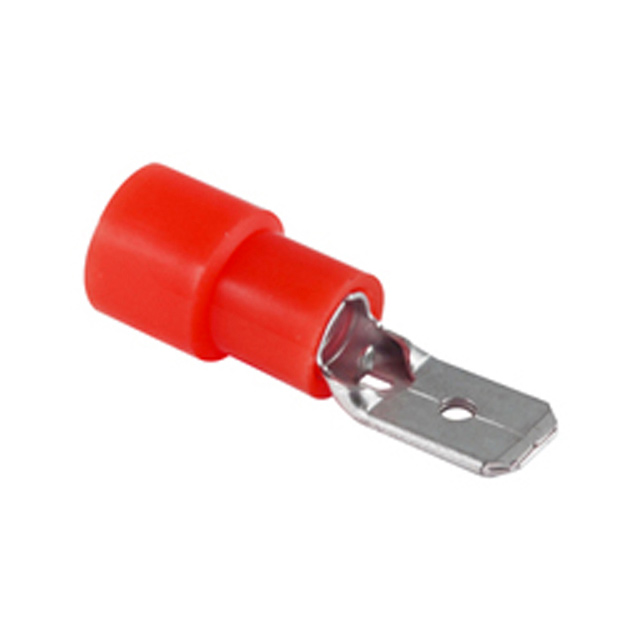

76-NIMD22-110L
Or copy the link below:
- Mfr.Part #
- 76-NIMD22-110L
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- NYLON INS MALE DISCONNECT 50 BAG
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Material :
- Tin Plated Brass
- Terminal Material :
- Brass
- Terminal Type :
- Disconnect - Male
- Features :
- -
- Series :
- NEMA
- Insulation :
- Non-Mating End Insulated
- Size :
- 0.110
- Insulation Material :
- Nylon
- Wire Size :
- 22-18awg
- Length - Overall :
- 0.846 (21.49mm)
- Tab Width :
- 0.110 (2.79mm)
- Weight :
- 136.077711 g
- Product Status :
- Active
- Contact Finish :
- Electro-Tin
- Color :
- Red
- Manufacturer :
- NTE Electronics
- Wire Gauge :
- 18-22 AWG
- Insulation Diameter :
- -
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Length :
- 154.94 mm
- Package Quantity :
- 50
- Tab Thickness :
- 0.032 (0.81mm)
- Gender :
- Male
- Termination :
- Crimp
- Mounting Type :
- Free Hanging (In-Line)
- Height :
- 7.62 mm
- Tab Size :
- 0.11 x 0.032
- RoHS :
- Compliant
- Package :
- Bag
- Contact Material :
- Brass
- Insulated :
- Yes (Nylon Insulated)
- Width :
- 109.22 mm
- Datasheets
- 76-NIMD22-110L
76-NIMD22-110L datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from NTE ELECT stock available at Xinshop
