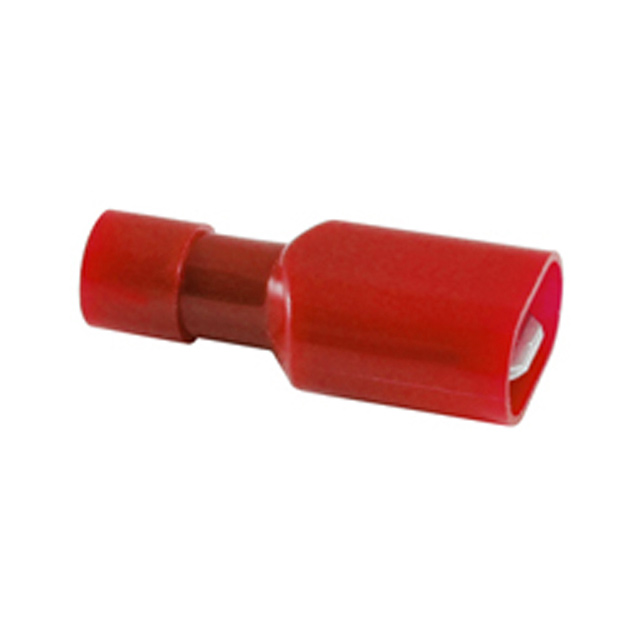

76-NFIMD22

Manufacturer :

NTE Electronics, Inc.

Product Category :

Quick Connects, Quick Disconnect Connectors

Package :

Tape and Reel (TR)

Contact Material :

Brass

Composition :

Metal Film

Temperature Coefficient :

±100ppm/°C

Tab Size :

0.25 x 0.032

Size / Dimension :

0.066 Dia x 0.150 L (1.68mm x 3.81mm)

Wire Strip Length :

0.41

Insulated :

Insulated

Failure Rate :

R (0.01%)

Insulation Material :

Nylon

Terminal Material :

Brass

Series :

Military, MIL-PRF-39017/05, RLR05

Base Product Number :

RLR05

Features :

Military, Moisture Resistant, Weldable

Tolerance :

±1%

Color :

Red

Package Quantity :

10

Mounting Type :

Free Hanging (In-Line)

Insulation Diameter :

-

Operating Temperature :

-65°C ~ 150°C

Wire Gauge :

18-22 AWG

Resistance :

2 kOhms

Tab Width :

0.250 (6.35mm)

Manufacturer :

NTE Electronics

Gender :

Male

Supplier Device Package :

Axial

Insulation :

Fully Insulated

Terminal Type :

Disconnect - Male

Tab Thickness :

0.032 (0.81mm)

Contact Finish :

Electro-Tin

Material :

Tin Plated Brass

Wire Size :

22-18 AWG

Wire Size (AWG) :

22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG

Product Status :

Active

Height - Seated (Max) :

-

Power (Watts) :

0.125W, 1/8W

Length - Overall :

0.925 (23.50mm)

Termination :

Crimp

Number of Terminations :

2

Package / Case :

Axial
