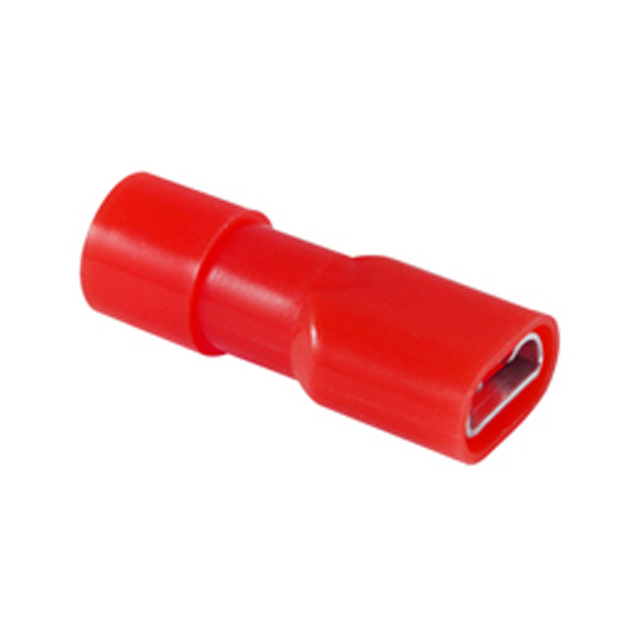

76-NFIFD22L

Manufacturer :

NTE Electronics, Inc.

Product Category :

Quick Connects, Quick Disconnect Connectors

Color :

Red

Orientation :

N (Normal)

Insulation Diameter :

-

Gender :

FEMALE

Tab Width :

0.250 (6.35mm)

Wire Gauge :

18-22 AWG

Size :

0.250

Shell Size, MIL :

-

Number of Positions :

8

Includes :

-

Operating Temperature :

-65°C ~ 200°C

Wire Size :

22-18awg

Manufacturer :

NTE Electronics

Wire Size (AWG) :

22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG

Terminal Material :

Brass

Note :

Contacts Not Included

Ingress Protection :

Environment Resistant

Series :

Military, MIL-DTL-83723 Series III

Material Flammability Rating :

-

Material :

Tin Plated Brass

Tab Size :

0.25 x 0.032

Shell Material :

Aluminum Alloy

Termination :

Crimp

Mounting Type :

Panel Mount

Insulation :

Fully Insulated

Contact Material :

Brass

Type :

For Female Sockets

Contact Finish :

Electro-Tin

Shell Size - Insert :

18-8

Mounting Feature :

Flange

Contact Size :

12

Package Quantity :

50

Connector Type :

Receptacle Housing

Product Status :

Active

Features :

-

Insulation Material :

Nylon

Fastening Type :

Bayonet Lock

Base Product Number :

M83723/71

Terminal Type :

Disconnect - Female

Shell Finish :

Electroless Nickel

Contact Shape :

Circular

Shielding :

Unshielded

Contact Type :

Crimp

Housing Color :

Silver

Package :

Box

Insulated :

Nylon Fully Insulated

Length - Overall :

0.866 (22.00mm)

Insert Material :

Plastic

Tab Thickness :

0.032 (0.81mm)
