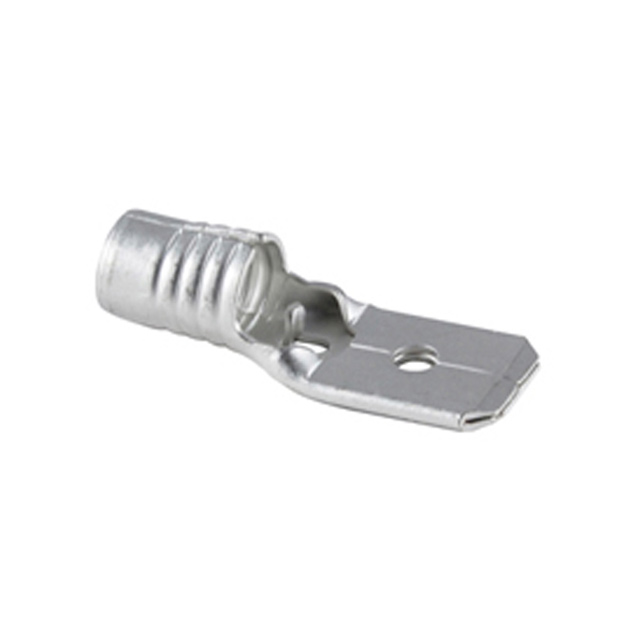

76-MD22
Or copy the link below:
- Mfr.Part #
- 76-MD22
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- NON INS MALE DISCONNECT
- Stock
- 1,612
- In Stock ：
- 1,612
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- NEMA
- Contact Material :
- Brass
- Insulated :
- Non-Insulated
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Package :
- Bag
- Size :
- 0.250
- Terminal Type :
- Disconnect - Male
- Insulation :
- Non-Insulated
- Manufacturer :
- NTE Electronics
- Material :
- Tin Plated Brass
- Tab Thickness :
- 0.032 (0.81mm)
- Product Status :
- Active
- Insulation Diameter :
- -
- Gender :
- Male
- Termination :
- Crimp
- Terminal Material :
- Brass
- Wire Gauge :
- 18-22 AWG
- Tab Width :
- 0.250 (6.35mm)
- Features :
- -
- Length - Overall :
- 0.638 (16.20mm)
- Package Quantity :
- 1
- Wire Size :
- 22-18 AWG
- Color :
- -
- Contact Finish :
- Electro-Tin
- Datasheets
- 76-MD22
