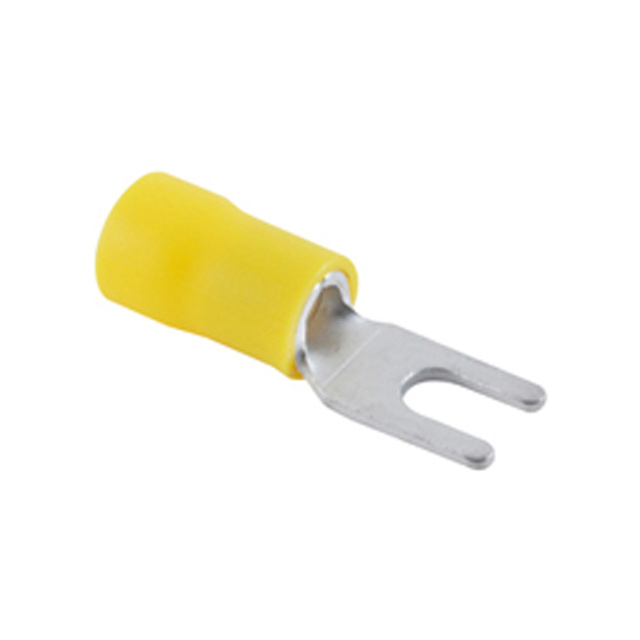

76-IST12-08

Manufacturer :

NTE Electronics, Inc.

Product Category :

Spade Connectors

Color :

Yellow

Mounting Type :

Through Hole

Wire Strip Length :

0.5

Insulation :

Insulated

Insulation Diameter :

-

Approvals :

cUL

Voltage Rating - DC :

1250V (1.25kV)

Features :

High Temperature

Stud/Tab Size :

8 Stud

Wire Gauge :

10-12 AWG

Termination :

PC Pins

Contact Material :

Copper

Length - Overall :

0.992 (25.20mm)

Material - Insulation :

Poly-Vinyl Chloride (PVC)

Material :

Tin Plated Copper

Manufacturer :

NTE Electronics

Size / Dimension :

-

Ratings :

AEC-Q200, Y2

Stud Size :

#8

Voltage Rating - AC :

450V

Package / Case :

Radial

Capacitance :

0.018 µF

Product Status :

Active

Package :

Bulk

Insulated :

Insulated

Operating Temperature :

-40°C ~ 105°C

Width - Outer Edges :

0.335 (8.51mm)

Wire Size (AWG) :

12 AWG, 11 AWG, 10 AWG

Contact Finish :

Electro-Tin

Dielectric Material :

Polypropylene (PP), Metallized

Package Quantity :

10

Terminal Material :

Copper

ESR (Equivalent Series Resistance) :

146 mOhms

Series :

MKP385e

Tongue Inside Opening :

-

Wire Size :

12-10 AWG

Length - Ring Center to Termination :

-

Height - Seated (Max) :

-

Lead Spacing :

0.591 (15.00mm)

Length - Termination :

-

Insulation Material :

Vinyl

Tolerance :

±5%

Terminal Type :

Spade/Fork

Applications :

Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber
