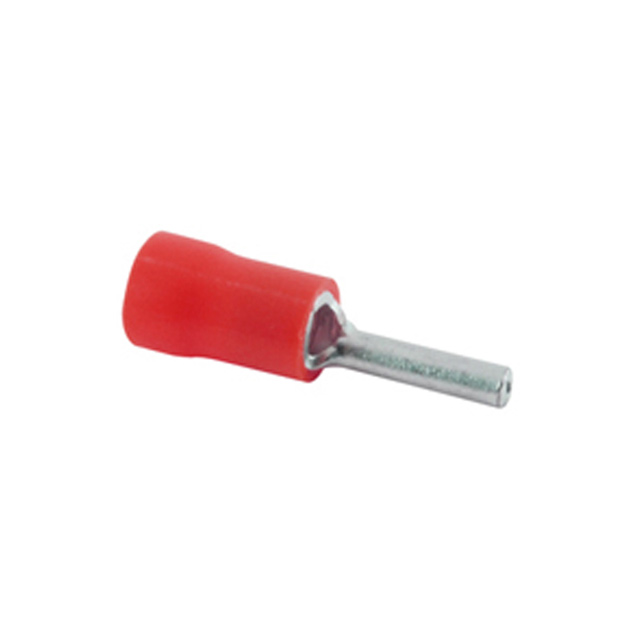

76-IPT22
Or copy the link below:
- Mfr.Part #
- 76-IPT22
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- PVC INS PIN TERM 22-18AWG
- Stock
- 4,872
- In Stock ：
- 4,872
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Wire Pin Connectors
- Color :
- Red
- Approvals :
- cUL
- Material :
- Tin Plated Copper
- Length - Termination :
- 0.394 (10.00mm)
- Insulated :
- Yes (Pvc Insulated)
- Terminal Material :
- Copper
- Wire Gauge :
- 18-22 AWG
- Material - Insulation :
- Poly-Vinyl Chloride (PVC)
- Length - Overall :
- 0.886 (22.50mm)
- Insulation Material :
- Vinyl
- Insulation Diameter :
- 0.161 (4.09mm)
- Contact Finish :
- Electro-Tin
- Termination :
- Crimp
- Pin Diameter :
- Circular - 0.075 (1.91mm) Dia
- Features :
- -
- Terminal Type :
- Pin
- Diameter - Barrel ID :
- 0.067 (1.70mm)
- Package :
- Bag
- Wire Size :
- 22-18awg
- Contact Material :
- Copper
- Product Status :
- Active
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Length - Pin :
- 0.492 (12.50mm)
- Diameter - Barrel OD :
- -
- Insulation :
- Insulated
- Manufacturer :
- NTE Electronics
- Package Quantity :
- 1
- Series :
- -
- Datasheets
- 76-IPT22
76-IPT22 datasheet pdf and Terminals - Wire Pin Connectors product details from NTE ELECT stock available at Xinshop
