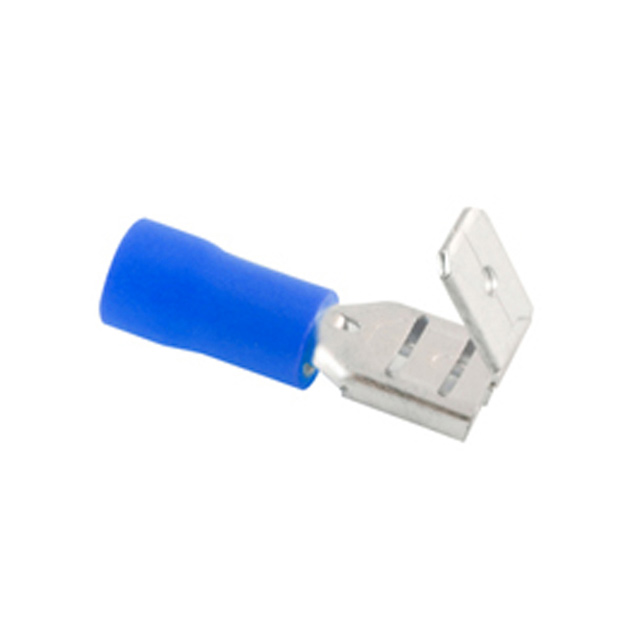

76-IPD16L
Or copy the link below:
- Mfr.Part #
- 76-IPD16L
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- PVC INS PIGGYBACK DISCONN 50 BAG
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Contact Material :
- Brass
- Termination :
- Crimp
- Wire Gauge :
- 14-16 AWG
- Material :
- Tin Plated Brass
- Product Status :
- Active
- Package Quantity :
- 50
- Gender :
- Female and Male
- Manufacturer :
- NTE Electronics
- Terminal Material :
- Brass
- Tab Thickness :
- 0.032 (0.81mm)
- Wire Size (AWG) :
- 16 AWG, 15 AWG, 14 AWG
- Insulation Diameter :
- -
- Tab Size :
- 0.25 x 0.032
- Color :
- Blue
- Length - Overall :
- 0.827 (21.00mm)
- Tab Width :
- 0.250 (6.35mm)
- Insulated :
- Insulated
- Contact Finish :
- Electro-Tin
- Insulation Material :
- Vinyl
- Features :
- -
- Package :
- Bag
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- NEMA
- Insulation :
- Non-Mating End Insulated
- Wire Size :
- 16-14 AWG
- Terminal Type :
- Disconnect - Piggyback
- Datasheets
- 76-IPD16L
76-IPD16L datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from NTE ELECT stock available at Xinshop
