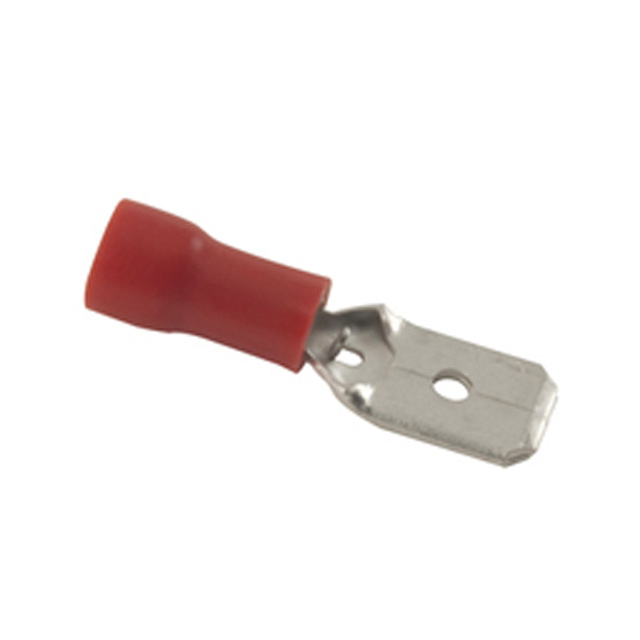

76-IMD22-110
Or copy the link below:
- Mfr.Part #
- 76-IMD22-110
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- Datasheet
- Download
- Description
- PVC INS MALE DISCON 22-18
- Stock
- 28
- In Stock ：
- 28
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Insulation Material :
- Vinyl
- Wire Size (AWG) :
- 22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG
- Contact Material :
- Brass
- Reach Compliance Code :
- Unknown
- Product Status :
- Active
- Size :
- 0.110
- Wire Size :
- 22-18 AWG
- Material :
- Tin Plated Brass
- Terminal and Terminal Block Type :
- TAB TERMINAL
- Tab Thickness :
- 0.032 (0.81mm)
- Gender :
- Male
- Tab Size :
- 0.11 x 0.032
- Insulation Diameter :
- -
- Length - Overall :
- 0.807 (20.50mm)
- Tab Width :
- 0.110 (2.79mm)
- Wire Strip Length :
- 0.39
- Insulated :
- Insulated
- Contact Finish :
- Electro-Tin
- Color :
- Red
- Series :
- NEMA
- Features :
- -
- Package :
- Bag
- Terminal Type :
- Disconnect - Male
- Termination :
- Crimp
- Package Quantity :
- 10
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge :
- 18-22 AWG
- Terminal Material :
- Brass
- Insulation :
- Non-Mating End Insulated
- Datasheets
- 76-IMD22-110
76-IMD22-110 datasheet pdf and Connectors, Interconnects product details from NTE Electronics, Inc. stock available at Xinshop
