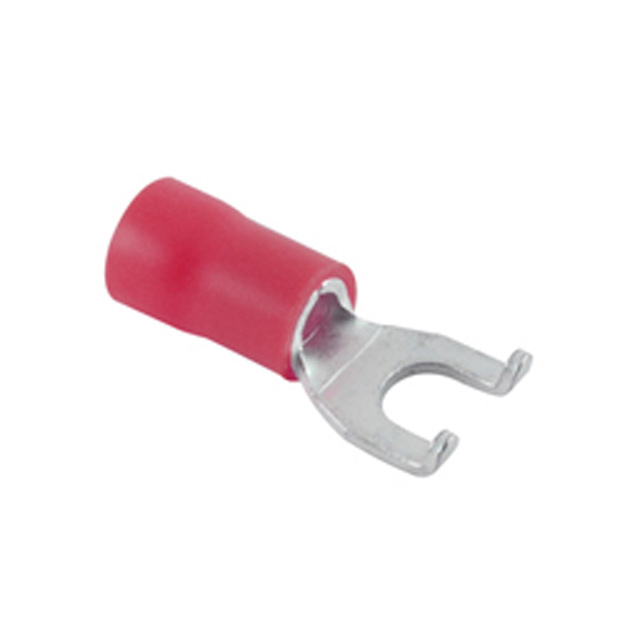

76-IFST22-08L

Manufacturer :

NTE Electronics, Inc.

Product Category :

Spade Connectors

Features :

Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding

Ratings :

AEC-Q200

Length - Overall :

0.945 (24.00mm)

Package Quantity :

50

Termination :

Crimp

Material :

Tin Plated Copper

Stud Size :

#8

Approvals :

cUL

Insulation :

Insulated

Wire Size (AWG) :

22 AWG, 21 AWG, 20 AWG, 19 AWG, 18 AWG

Stud/Tab Size :

8 Stud

Failure Rate :

-

Insulated :

Yes (Pvc Insulated)

Resistance :

2 MOhms

Terminal Type :

Spade/Fork - Flanged

Material - Insulation :

Poly-Vinyl Chloride (PVC)

Tongue Inside Opening :

-

Composition :

Metal Element

Insulation Diameter :

-

Height - Seated (Max) :

0.055 (1.39mm)

Wire Gauge :

18-22 AWG

Supplier Device Package :

2818

Length - Ring Center to Termination :

-

Contact Finish :

Electro-Tin

Width - Outer Edges :

0.335 (8.51mm)

Temperature Coefficient :

±200ppm/°C

Wire Size :

22-18awg

Number of Terminations :

2

Insulation Material :

Vinyl

Series :

WSH2818

Product Status :

Obsolete

Mounting Type :

Free Hanging (In-Line)

Wire Strip Length :

0.39

Tolerance :

±1%

Terminal Material :

Copper

Color :

Red

Operating Temperature :

-65°C ~ 170°C

Power (Watts) :

5W

Contact Material :

Copper

Size / Dimension :

0.280 L x 0.181 W (7.10mm x 4.60mm)

Package / Case :

Nonstandard

Manufacturer :

NTE Electronics

Length - Termination :

-

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;
