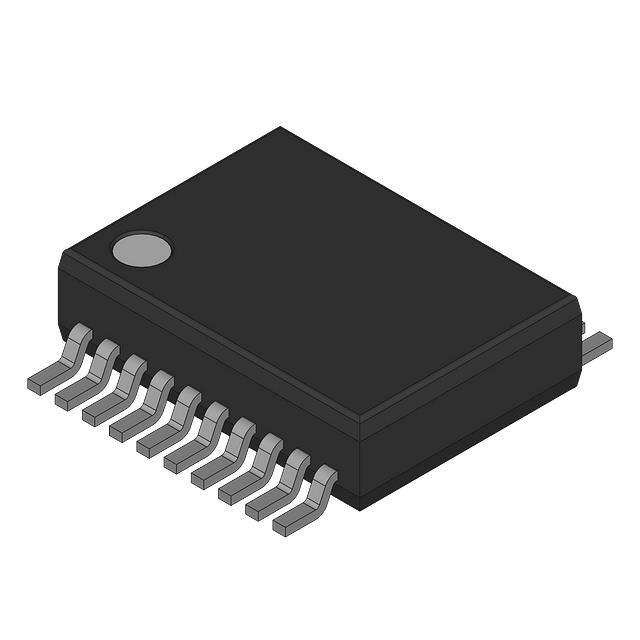

74HC374DB,112

Manufacturer :

NXP Semiconductors

Product Category :

Flip Flops

Current - Quiescent (Iq) :

4μA

Current - Output High, Low :

7.8mA 7.8mA

Input Capacitance :

3.5pF

Supply Voltage :

5V

Logic Function :

D-Type, Flip-Flop

Width :

5.3mm

Function :

Standard

Height Seated (Max) :

2mm

Mount :

Surface Mount

Voltage - Supply :

2V~6V

Terminal Form :

Gull wing

Mounting Type :

Surface Mount

Terminal Position :

Dual

Contact Plating :

Gold

Trigger Type :

POSITIVE EDGE

Output Type :

Tri-State, Non-Inverted

Family :

HC/UH

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Clock Edge Trigger Type :

POSITIVE EDGE

Operating Temperature :

-40°C~125°C TA

Operating Supply Voltage :

5V

Propagation Delay :

250 ns

Factory Lead Time :

13 Weeks

Package / Case :

20-SSOP (0.209, 5.30mm Width)

Polarity :

Non-Inverting

Peak Reflow Temperature (Cel) :

260

Number of Terminations :

20

Load Capacitance :

50pF

Number of Pins :

20

Supply Voltage-Max (Vsup) :

6V

Packaging :

Tube

Number of Bits :

8

Terminal Pitch :

0.65mm

Series :

74HC

Quiescent Current :

8μA

RoHS Status :

ROHS3 Compliant

Number of Ports :

2

Base Part Number :

74HC374

Number of Input Lines :

8

Output Characteristics :

3-STATE

Length :

7.2mm

Turn On Delay Time :

14 ns

JESD-609 Code :

e4

Number of Elements :

1

Radiation Hardening :

No

Time@Peak Reflow Temperature-Max (s) :

30

Max Propagation Delay @ V, Max CL :

28ns @ 6V, 50pF

Supply Voltage-Min (Vsup) :

2V

Type :

D-Type

Clock Frequency :

83MHz
