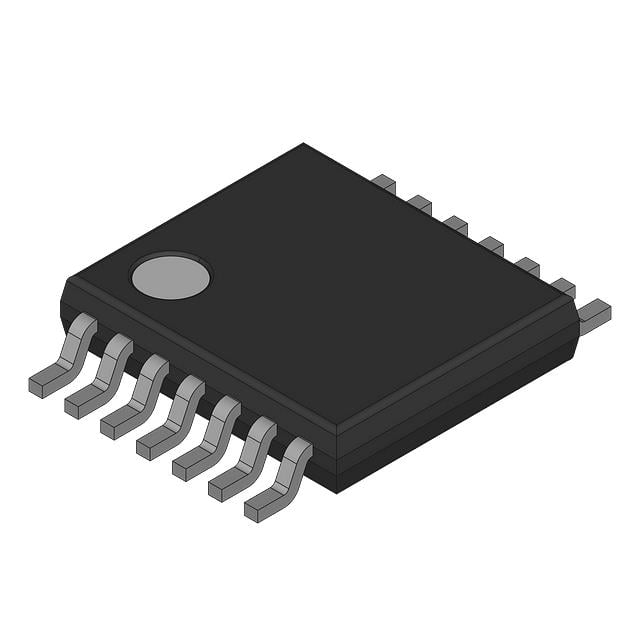

74HC27PW118

Manufacturer :

Nexperia

Product Category :

Gates and Inverters

Number of Terminations :

14

Logic Level - High :

1.5V ~ 4.2V

Quiescent Current :

2µA

Operating Temperature :

-40°C~125°C

Number of Outputs :

1

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Supply Voltage-Max (Vsup) :

6V

Factory Lead Time :

4 Weeks

Terminal Form :

Gull wing

Current - Output High, Low :

5.2mA 5.2mA

Propagation Delay :

15 ns

Series :

74HC

Terminal Position :

Dual

Max Propagation Delay @ V, Max CL :

15ns @ 6V, 50pF

Supply Voltage-Min (Vsup) :

2V

Time@Peak Reflow Temperature-Max (s) :

30

Base Part Number :

74HC27

Length :

5mm

Pin Count :

14

Number of Gates :

3

Published :

1998

Lead Free :

Lead Free

Operating Supply Voltage :

5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Supply :

2V~6V

RoHS Status :

ROHS3 Compliant

Family :

HC/UH

Peak Reflow Temperature (Cel) :

260

Radiation Hardening :

No

Number of Pins :

14

JESD-609 Code :

e4

Package / Case :

14-TSSOP (0.173, 4.40mm Width)

Supply Voltage :

5V

Turn On Delay Time :

23 ns

Logic Function :

NOR

Width :

4.4mm

Logic Level - Low :

0.5V ~ 1.8V

Logic Type :

NOR Gate

Terminal Pitch :

0.65mm

Mounting Type :

Surface Mount

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Number of Functions :

3
