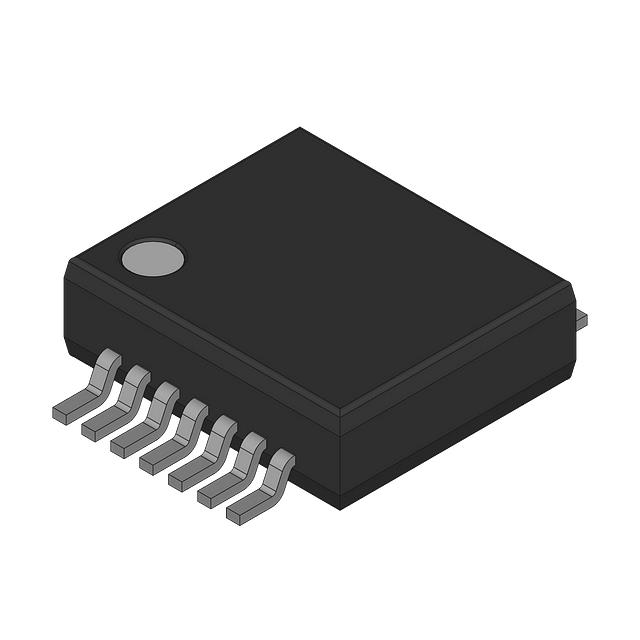

74HC21DB,118

Manufacturer :

NXP Semiconductors

Product Category :

Gates and Inverters

Quiescent Current :

2µA

Time@Peak Reflow Temperature-Max (s) :

30

Operating Temperature :

-40°C~125°C

Operating Supply Voltage :

5V

Series :

74HC

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Number of Outputs :

1

Load Capacitance :

50pF

Published :

2010

Width :

5.3mm

Max Propagation Delay @ V, Max CL :

19ns @ 6V, 50pF

Number of Pins :

14

Radiation Hardening :

No

Current - Output High, Low :

5.2mA 5.2mA

Factory Lead Time :

13 Weeks

RoHS Status :

ROHS3 Compliant

Peak Reflow Temperature (Cel) :

260

Logic Level - High :

1.5V ~ 4.2V

Number of Terminations :

14

Number of Functions :

2

Voltage - Supply :

2V~6V

Mount :

Surface Mount

Number of Gates :

2

Logic Type :

AND Gate

Number of Inputs :

4

Supply Voltage-Min (Vsup) :

2V

Turn On Delay Time :

26 ns

Supply Voltage :

5V

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Position :

Dual

Terminal Pitch :

0.65mm

Supply Voltage-Max (Vsup) :

6V

Family :

HC/UH

Package / Case :

14-SSOP (0.209, 5.30mm Width)

JESD-609 Code :

e4

Mounting Type :

Surface Mount

Pin Count :

14

Propagation Delay :

19 ns

Logic Function :

AND

Logic Level - Low :

0.5V ~ 1.8V

Terminal Form :

Gull wing

Base Part Number :

74HC21
