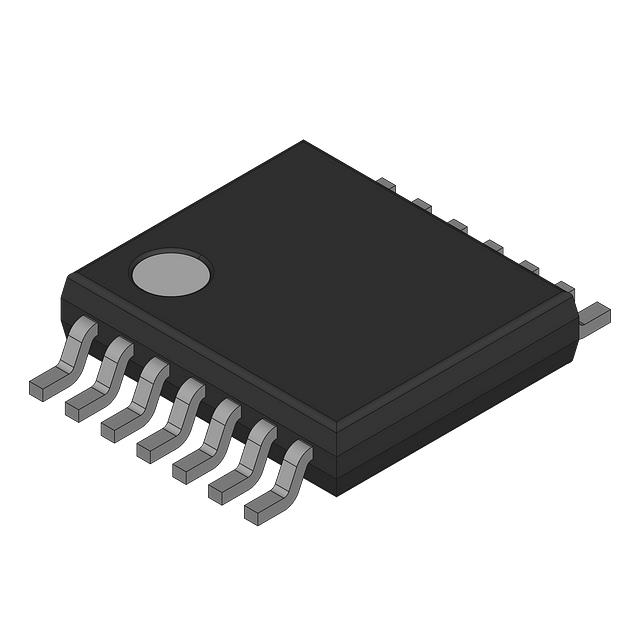

74HC14PW,118

Manufacturer :

NXP Semiconductors

Product Category :

Gates and Inverters

Feature :

Schmitt Trigger

Propagation Delay (tpd) :

190 ns

Supply Voltage-Max (Vsup) :

6V

Package / Case :

14-TSSOP (0.173, 4.40mm Width)

Max Propagation Delay @ V, Max CL :

21ns @ 6V, 50pF

Operating Temperature :

-40°C~125°C

Series :

74HC

Length :

5mm

Supply Voltage-Min (Vsup) :

2V

Terminal Finish :

Nickel/Palladium/Gold (Ni/Pd/Au)

Logic Type :

Inverter

HTS Code :

8542.39.00.01

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Logic Level - Low :

0.3V ~ 1.2V

Base Part Number :

74HC14

Current - Output High, Low :

5.2mA 5.2mA

Family :

HC/UH

Voltage - Supply :

2V~6V

Pin Count :

14

Number of Terminations :

14

Number of Pins :

14

Surface Mount :

yes

Terminal Form :

Gull wing

Number of Circuits :

6

Published :

2013

Current - Quiescent (Max) :

2µA

Factory Lead Time :

4 Weeks

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e4

Width :

4.4mm

Terminal Position :

Dual

Number of Functions :

6

Height Seated (Max) :

1.1mm

Packaging :

Tape and Reel (TR)

Mounting Type :

Surface Mount

Logic Level - High :

1.5V ~ 4.2V

Supply Voltage :

5V

Output Current :

25mA
