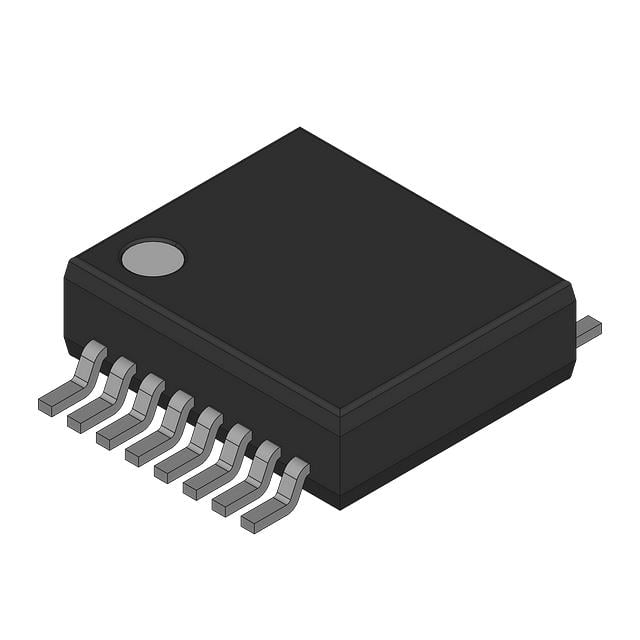

74HC137DB118

Manufacturer :

Nexperia

Product Category :

Signal Switches, Multiplexers, Decoders

JESD-609 Code :

e4

Height Seated (Max) :

2mm

Base Part Number :

74HC137

Contact Plating :

Gold

Supply Voltage-Min (Vsup) :

2V

Family :

HC/UH

Package / Case :

16-SSOP (0.209, 5.30mm Width)

Voltage Supply Source :

Single Supply

Additional Feature :

ADDRESS LATCHES

Circuit :

1 x 3:8

Number of Functions :

1

Number of Input Lines :

3

RoHS Status :

ROHS3 Compliant

Type :

Decoder/Demultiplexer

Propagation Delay :

50 ns

Published :

2001

Operating Supply Voltage :

5V

Independent Circuits :

1

Mount :

Surface Mount

Number of Pins :

16

Terminal Position :

Dual

Polarity :

Inverting

Input Conditioning :

LATCHED

Length :

6.2mm

Pin Count :

16

Series :

74HC

Number of Output Lines :

8

Voltage - Supply :

2V~6V

Turn On Delay Time :

285 ns

Logic Function :

Decoder, Demultiplexer, Latch

Terminal Form :

Gull wing

Supply Voltage-Max (Vsup) :

6V

Radiation Hardening :

No

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Operating Temperature :

-40°C~125°C

Current - Output High, Low :

5.2mA 5.2mA

Supply Voltage :

5V

Quiescent Current :

8μA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

16

Factory Lead Time :

13 Weeks

Supply Type :

Single

Terminal Pitch :

0.65mm
