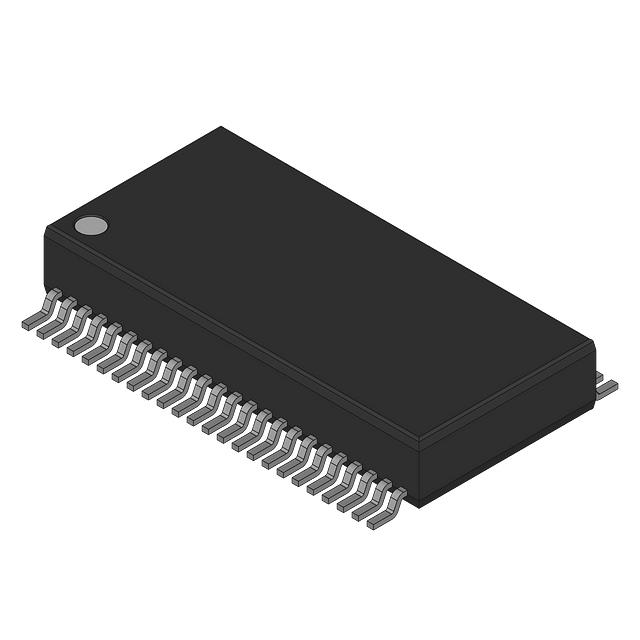

74FR16540SSC

Manufacturer :

Fairchild Semiconductor

Product Category :

Buffers, Drivers, Receivers, Transceivers

JESD-30 Code :

R-PDSO-G48

Reach Compliance Code :

Unknown

Terminal Position :

Dual

Family :

FR/FASTR

Number of Bits :

8

Number of Ports :

2

Seated Height-Max :

2.74 mm

Number of Terminals :

48

Width :

7.495 mm

Length :

15.875 mm

Terminal Form :

Gull wing

Propagation Delay (tpd) :

8.2 ns

Pin Count :

48

Supply Voltage-Max (Vsup) :

5.5 V

Surface Mount :

yes

Temperature Grade :

COMMERCIAL

Terminal Pitch :

0.635 mm

Manufacturer :

Rochester Electronics LLC

Qualification Status :

Not Qualified

Output Characteristics :

3-STATE

Technology :

TTL

HTS Code :

8542.39.00.01

Number of Functions :

2

Additional Feature :

WITH DUAL OUTPUT ENABLE

Output Polarity :

INVERTED

Supply Voltage-Min (Vsup) :

4.5 V

Package Shape :

RECTANGULAR

Logic IC Type :

BUS DRIVER
