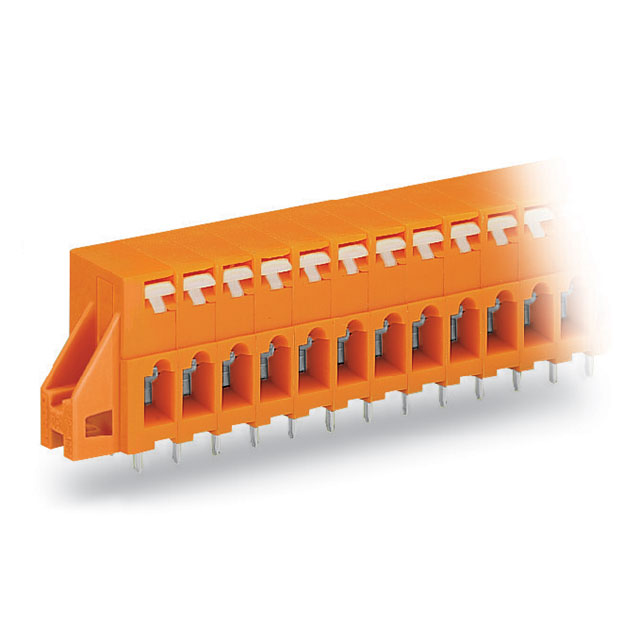

741-235

Manufacturer :

WAGO

Product Category :

Wire to Board

Manufacturer :

Wago

AWG max. :

12

Type :

741-235

Number of Poles :

5

Number of Decks :

1

Additional Feature :

Front Entry

Positions Per Level :

5

Nominal voltage :

320V

Package :

Box

Flammability Rating :

UL94 V-0

Min. stripping length :

5mm

Number of Levels :

1

Wire Termination :

Screwless - Push Button Clamp

Current :

10 A

Product Status :

Active

Wire Cross Section :

2.5 mm2

Rated current In :

16

Length :

12.80mm

Composition :

Polyamide

Approvals :

CSA

Pollution degree :

2

HTS Code :

8536.69.40.40

Pin Length :

4 mm

Contact Material :

Copper, Tin

Screw Thread :

-

Cross section (flexible) (min.) :

0.08mm²

Pins per row :

5

Rated Current :

16 A

RoHS :

yes

Stripping length (max.) :

6mm

Nominal current - rounded value :

16A

Housing Material :

Polyamide (PA66), Nylon 6/6

Content :

120pc(s)

Voltage :

300 V

Connection :

Spring-loaded terminal,Print

Housing Color :

Orange

Cross section (inflexible) (min.) :

0.08mm²

CS :

5.08mm

Number of Rows :

1

Color :

Orange

Inflammability class of insulation material according to with UL94 :

V0

Clamp Material - Plating :

Steel - Nickel Plated

Rated Voltage :

250 V

No. of rows :

1

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Number of Pins :

5

Wire Gauge :

12-28 AWG

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Fastening Method :

SPRING LOADED

Industrial packaging :

yes

Connectable conductor cross section multi-wired :

0.08 - 2.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Cross section (flexible) (max.) :

2.50mm²

Connectable conductor cross section solid-core :

0.08 - 2.5

Manufacturer part # :

741-235

Packaging type :

Other

ECCN Code :

EAR99

Width :

34.72mm

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Cross section (inflexible) (max.) :

2.50mm²

Torque - Screw :

-

Mounting Type :

PCB Mount

Mating Orientation :

Horizontal with Board

Nominal current :

16A

Temperature Range :

-76-221 °F

Operating Temperature :

-60°C ~ 105°C

Reach Compliance Code :

Unknown

Enclosure material :

Polyamide

Series :

741

Number of Ways :

5

Connection Type :

Spring Clamp

Rated surge voltage :

4

AWG (min.) :

28

Pitch :

0.200 (5.08mm)

Current Rating :

16 A

Screw Material - Plating :

-

Over voltage category :

III

Type of fastening :

Solder

Actuation direction :

Parallel (to the PCB)

Height :

22.50mm

Features :

+ CAGE CLAMP®

Wire protection :

yes
