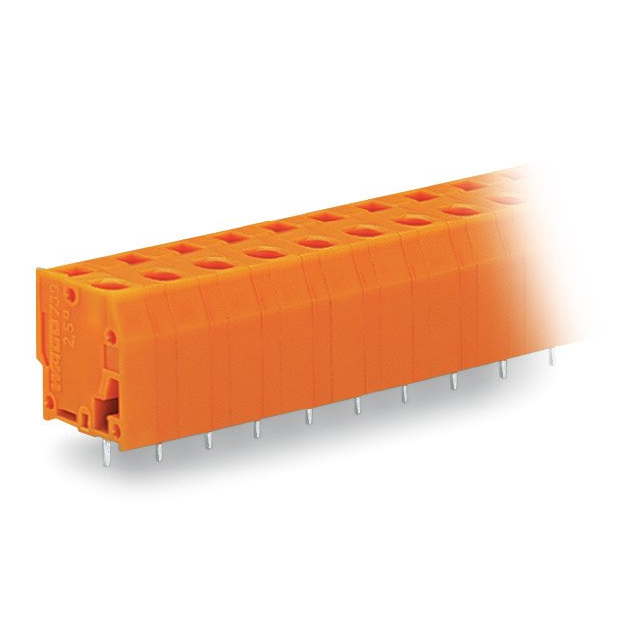

739-238

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (flexible) (max.) :

2.50mm²

Operating Temperature :

-60°C ~ 105°C

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Manufacturer :

Wago

Industrial packaging :

yes

Connection Type :

Spring Clamp

CS :

7.62mm

Wire Gauge :

14-28 AWG

Content :

80pc(s)

Cross section (flexible) (min.) :

0.08mm²

Housing Material :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Number of Levels :

1

Connection :

Spring-loaded terminal,Print

Current :

20 A

Manufacturer part # :

739-238

Screw Material - Plating :

-

EU RoHS :

Compliant

Composition :

Polyamide

Automotive :

No

AWG max. :

12

Stripping length (max.) :

9mm

Number of Poles :

8

Pollution degree :

2

Over voltage category :

III

HTS :

8536.90.40.00

Connectable conductor cross section solid-core :

0.08 - 2.5

Height :

19.00mm

Mounting Type :

PCB Mount

No. of rows :

1

Min. stripping length :

7mm

Type :

739-238

Type of fastening :

Solder

Length :

14.30mm

Nominal voltage :

630V

Pin Length :

3.2 MilliMeters

AWG (min.) :

28

Mating Orientation :

Vertical with Board

Rated current In :

24

Positions Per Level :

8

ECCN (US) :

EAR99

Voltage :

300 V

Pitch :

0.300 (7.62mm)

Cross section (inflexible) (min.) :

0.08mm²

Features :

+ CAGE CLAMP®

Package :

Box

Clamp Material - Plating :

Steel - Nickel Plated

Width :

59.84mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Inflammability class of insulation material according to with UL94 :

V0

Torque - Screw :

-

Wire protection :

yes

PPAP :

No

Temperature Range :

-76 to 221 Degrees F

Packaging type :

Other

Approvals :

cURus;CSA

Cross section (inflexible) (max.) :

2.50mm²

Pins per row :

8

Screw Thread :

-

RoHS :

yes

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Color :

Orange

Connectable conductor cross section multi-wired :

0.08 - 2.5

Series :

739

Rated surge voltage :

6

Contact Material - Plating :

Electrolytic Copper - Tin Plated
