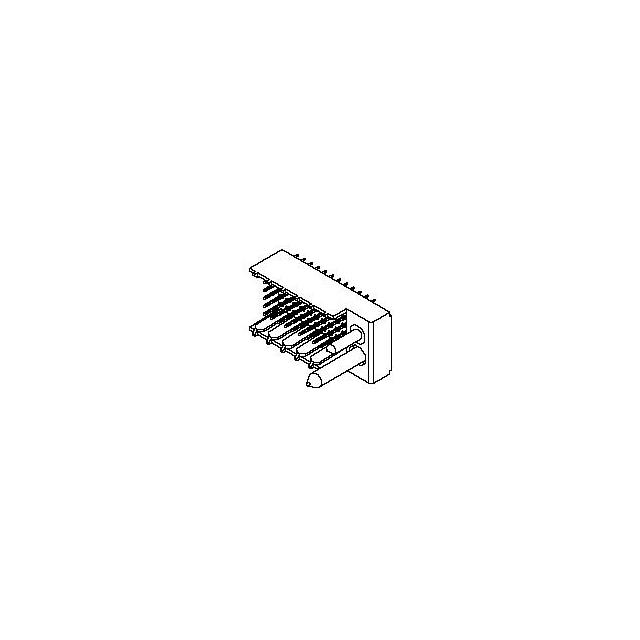

73644-3207

Manufacturer :

Molex

Product Category :

Specialized

UL Flammability Code :

94V-0

Rated Current (Signal) :

1 A

Contact Pattern :

RECTANGULAR

Voltage Rating :

250 VAC

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Mounting Angle :

Vertical

Reach Compliance Code :

Compliant

Total Number of Contacts :

144

Mounting Style :

Straight

MIL Conformance :

No

Mounting Type :

BOARD

DIN Conformance :

No

Connector Style :

HDM

RoHS :

Details

Body Breadth :

0.618 inch

Termination Type :

Press Fit

Housing Material :

Thermoplastic (TP)

Termination Style :

Press Fit

PCB Contact Row Spacing :

2.0066 mm

Product Depth (mm) :

15.7(mm)

Operating Temp Range :

-55C to 105C

Product Category :

High Speed / Modular Connectors

Features :

Guide Pin

Product Length (mm) :

55.6(mm)

Series :

73644

Reference Standard :

UL

Mounting Option 1 :

Guide Pin

Voltage Rating Max :

250VAC

Contact Gender :

Male

Board Mounting Option :

COMPLIANT BOARDLOCK

ECCN Code :

EAR99

Product Type :

High Speed / Modular Connectors

Insertion Force-Max :

.6116 N

JESD-609 Code :

e3

Connector Type :

BOARD CONNECTOR

Body Depth :

0.461 inch

Pitch :

2 mm

Plating Thickness :

30u inch

Contact Style :

SQ PIN-SKT

Contact Plating :

Gold Over Nickel

Mounting Option 2 :

LOCKING

IEC Conformance :

No

Maximum Operating Temperature :

+ 105 C

Contact Layout, Typical :

-

Contact Resistance Max :

10(mohm)

Operating Temperature :

-55°C ~ 105°C

Pbfree Code :

yes

Number of Rows :

6 Row

Brand :

Molex

Packaging :

Tube

Type :

Hard Metric

Body/Shell Style :

Receptacle

Package :

Box

Gender :

HDR

Reliability :

COMMERCIAL

Color :

Black

Housing Color :

Black

Connector Usage :

-

Pitch (mm) :

2(mm)

Number Of PCB Rows :

6

Product Status :

Active

Contact Finish :

Gold

Contact Material :

NOT SPECIFIED

Accessory Type :

-

Contact Resistance :

10 MΩ

Termination Method :

Press Fit

Insulator Color :

Black

Tradename :

HDM

Filter Feature :

No

Product Height (mm) :

20.85(mm)

Body Orientation :

Straight

Minimum Operating Temperature :

- 55 C

Current Rating (Amps) :

1A

Number of Columns :

24

Product :

Headers

Termination :

Press-Fit

Material Flammability Rating :

UL94 V-0

HTS Code :

8536.69.40.40

Mixed Contacts :

No

Base Product Number :

073644

Number of Contact Rows :

6

Insulation Resistance :

5000000000 Ω

Contact Finish Termination :

TIN OVER NICKEL

Contact Finish Thickness :

-

Additional Feature :

POLARIZED,HDM

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

144 Position

Number of Contacts :

144(POS)

Current Rating :

1 A

Current Rating (Max) :

1/Contact(A)

Number of Positions Loaded :

All

Terminal Pitch :

2 mm

Terminal Length :

0.138 inch

Mating Contact Pitch :

0.079 inch

Mating Contact Row Spacing :

0.079 inch
