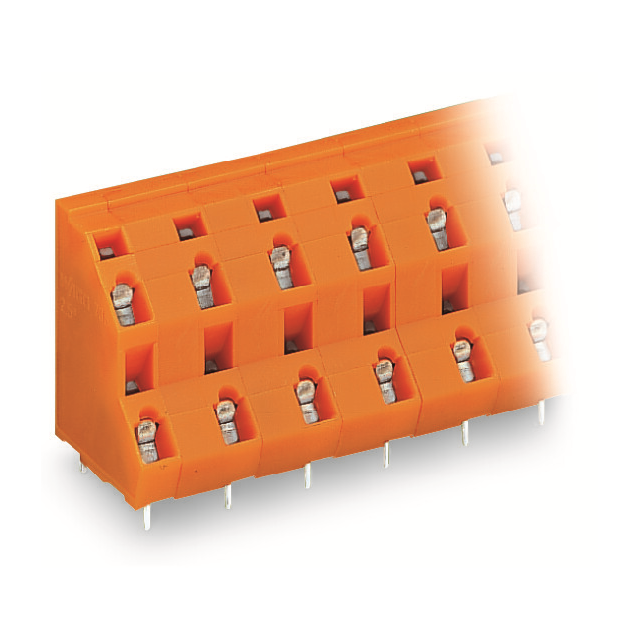

736-806

Manufacturer :

WAGO

Product Category :

Wire to Board

Number of Poles :

6

Screw Material - Plating :

-

Stripping length (max.) :

6mm

Length :

21.00mm

Width :

56.80mm

Cross section (inflexible) (max.) :

2.50mm²

EU RoHS :

Compliant

Positions Per Level :

12

Pin Length :

4 MilliMeters

Inflammability class of insulation material according to with UL94 :

V0

Number of Levels :

2

Voltage :

300 V

PPAP :

No

ECCN (US) :

EAR99

AWG max. :

12

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

AWG (min.) :

28

Connection :

Spring-loaded terminal,Print

Height :

30.50mm

Wire Gauge :

12-28 AWG

CS :

10.16mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Rated surge voltage :

8

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Composition :

Polyamide

Nominal voltage :

1000V

Connectable conductor cross section solid-core :

0.08 - 2.5

Series :

736

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Connection Type :

Spring Clamp

HTS :

8536.90.40.00

Screw Thread :

-

Pitch :

0.400 (10.16mm)

Manufacturer :

Wago

Approvals :

cURus;CSA

Product Status :

Active

Content :

28pc(s)

No. of rows :

2

Manufacturer part # :

736-806

Automotive :

No

Over voltage category :

III

Cross section (inflexible) (min.) :

0.08mm²

Industrial packaging :

yes

Pollution degree :

2

RoHS :

yes

Package :

Box

Connectable conductor cross section multi-wired :

0.08 - 2.5

Pins per row :

6

Min. stripping length :

8mm

Temperature Range :

-76 to 221 Degrees F

Mounting Type :

PCB Mount

Clamp Material - Plating :

Steel - Nickel Plated

Color :

Orange

Current :

10 A

Features :

+ CAGE CLAMP®

Housing Material :

Polyamide (PA66), Nylon 6/6

Packaging type :

Other

Torque - Screw :

-

Type :

736-806

Rated current In :

21

Wire protection :

yes

Type of fastening :

Solder

Operating Temperature :

-60°C ~ 105°C

Cross section (flexible) (max.) :

2.50mm²

Mating Orientation :

45° (135°) Angle with Board
