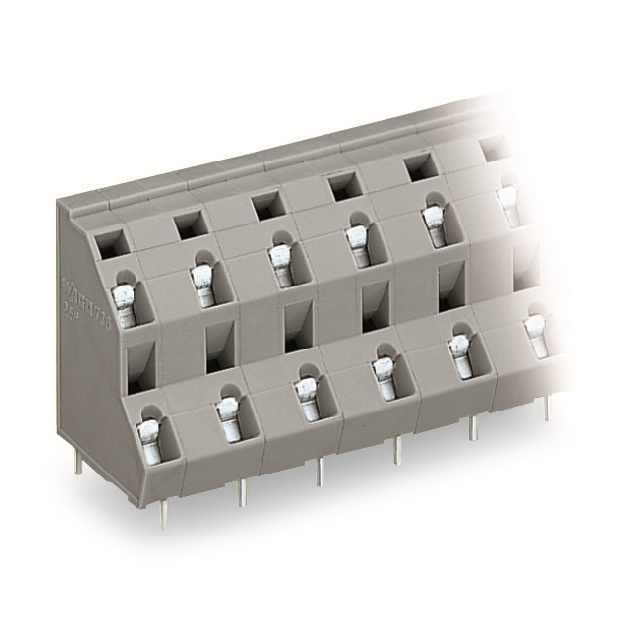

736-758

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (inflexible) (min.) :

0.08mm²

Wire protection :

yes

Wire Gauge :

12-28 AWG

Number of Pins :

16

AWG max. :

12

Current :

10 A

Mating Orientation :

45° (135°) Angle with Board

Cross section (flexible) (min.) :

0.08mm²

No. of rows :

2

Connection :

Spring-loaded terminal,Print

Number of Rows :

2

AWG (min.) :

28

Height :

30.50mm

Number of Poles :

8

Approvals :

cURus;CSA

Temperature Range :

-76 to 221 Degrees F

Number of Levels :

2

Torque - Screw :

-

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Housing Color :

Grey

Min. stripping length :

8mm

Pins per row :

8

Industrial packaging :

yes

Package :

Box

Type :

736-758

Length :

21.00mm

Cross section (inflexible) (max.) :

2.50mm²

Manufacturer part # :

736-758

Content :

21pc(s)

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Product Status :

Active

Housing Material :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Contact Material :

Copper, Tin

Voltage :

300 V

Manufacturer :

Wago

CS :

10mm

Cross section (flexible) (max.) :

2.50mm²

Nominal voltage :

1000V

Mounting Type :

PCB Mount

Pin Length :

4 MilliMeters

Features :

+ CAGE CLAMP®

Clamp Material - Plating :

Steel - Nickel Plated

Stripping length (max.) :

6mm

Positions Per Level :

16

Flammability Rating :

UL94 V-0

Width :

76.00mm

Series :

736

Screw Thread :

-

Operating Temperature :

-60°C ~ 105°C

Pitch :

0.394 (10.00mm)

Composition :

Polyamide

Screw Material - Plating :

-

Color :

Gray

Connection Type :

Spring Clamp
