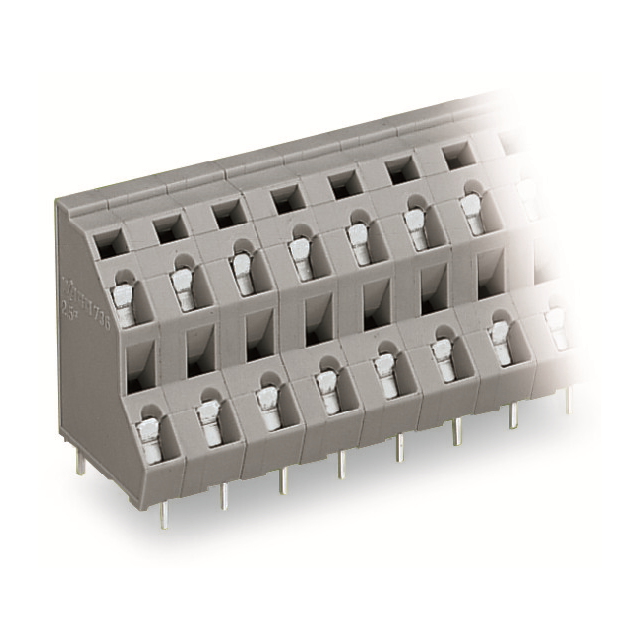

736-562

Manufacturer :

WAGO

Product Category :

Wire to Board

Composition :

Polyamide

Cross section (inflexible) (min.) :

0.08mm²

Content :

21pc(s)

Rated surge voltage :

6

Cross section (inflexible) (max.) :

2.50mm²

No. of rows :

2

Type :

736-562

Wire Gauge :

12-28 AWG

Packaging type :

Other

Rated current In :

21

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Torque - Screw :

-

Pitch :

0.295 (7.50mm)

Number of Levels :

2

Connection Type :

Spring Clamp

RoHS :

yes

Connection :

Spring-loaded terminal,Print

Current :

10 A

Series :

736

Number of Poles :

12

Min. stripping length :

8mm

Manufacturer :

Wago

Clamp Material - Plating :

Steel - Nickel Plated

Width :

88.50mm

Pins per row :

12

Length :

21.00mm

Positions Per Level :

24

Cross section (flexible) (min.) :

0.08mm²

Product Status :

Active

Wire Termination :

Screwless - Spring Cage, Tension Clamp

Pollution degree :

2

Nominal voltage :

630V

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Approvals :

cURus;CSA

Color :

Gray

Pin Length :

4 MilliMeters

Over voltage category :

III

Connectable conductor cross section multi-wired :

0.08 - 2.5

Housing Material :

Polyamide (PA66), Nylon 6/6

Screw Thread :

-

Mating Orientation :

45° (135°) Angle with Board

Wire protection :

yes

AWG (min.) :

28

Screw Material - Plating :

-

CS :

7.50mm

Inflammability class of insulation material according to with UL94 :

V0

Operating Temperature :

-60°C ~ 105°C

Voltage :

300 V

Manufacturer part # :

736-562

Temperature Range :

-76 to 221 Degrees F

AWG max. :

12

Height :

30.50mm

Stripping length (max.) :

6mm

Type of fastening :

Solder

Package :

Box

Connectable conductor cross section solid-core :

0.08 - 2.5

Features :

+ CAGE CLAMP®

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

Mounting Type :

PCB Mount

Industrial packaging :

yes

Cross section (flexible) (max.) :

2.50mm²
