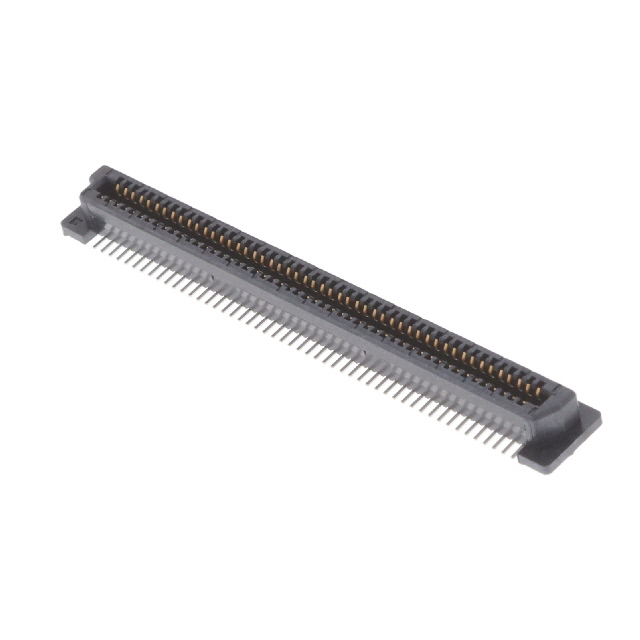

73277-101402LF
Or copy the link below:
- Mfr.Part #
- 73277-101402LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 100POS SMD GOLD
- Stock
- 77,600
- In Stock ：
- 77,600
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Rated Current (Signal) :
- 0.5A
- Pitch :
- 0.031 0.80mm
- UL Flammability Code :
- 94V-0
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- ECCN Code :
- EAR99
- Termination :
- Solder
- Additional Feature :
- TAPE and REEL PKG WITHOUT CAP
- Mounting Type :
- Surface Mount
- MIL Conformance :
- No
- Series :
- BergStak®, MezzSelect™
- RoHS Status :
- RoHS Compliant
- Mount :
- Surface Mount
- Contact Style :
- BELLOWED TYPE
- Published :
- 2000
- Contact Finish :
- Gold
- Feature :
- Board Guide
- Option :
- GENERAL PURPOSE
- Housing Material :
- Polymer
- PCB Contact Pattern :
- RECTANGULAR
- Withdrawl Force-Min :
- .0973 N
- HTS Code :
- 8536.69.40.40
- Contact Pattern :
- RECTANGULAR
- Housing Color :
- Black
- Number of Conductors :
- ONE
- Number of Rows :
- 2
- Max Operating Temperature :
- 85°C
- Gender :
- Receptacle
- Number of Positions :
- 100
- Length :
- 45.8mm
- Pbfree Code :
- yes
- Insertion Force-Max :
- .8896 N
- Plating Thickness :
- 8μin
- Polarization Key :
- POLARIZED HOUSING
- Height Above Board :
- 0.146 3.70mm
- IEC Conformance :
- No
- Width :
- 6mm
- Number Of PCB Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Total Number of Contacts :
- 100
- Depth :
- 6mm
- Reference Standard :
- UL
- Packaging :
- Tape and Reel (TR)
- Lead Free :
- Lead Free
- Orientation :
- Straight
- DIN Conformance :
- No
- Factory Lead Time :
- 8 Weeks
- Row Spacing :
- 2.4 mm
- Contact Finish Thickness :
- 8.00μin 0.203μm
- Contact Material :
- Copper
- Min Operating Temperature :
- -40°C
- Contact Resistance :
- 50mOhm
- Connector Type :
- Receptacle, Outer Shroud Contacts
- Mixed Contacts :
- No
- Datasheets
- 73277-101402LF
73277-101402LF Documents
Receptacle, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 100 Positions BergStak®, MezzSelect™ Gold Solder Copper
73277-101402LF Overview
This product is packaged in a Receptacle, Outer Shroud Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the BergStak®, MezzSelect™ Series.It is possible to ensure that Board Guide remains constant during operation.This part must be mounted with a Surface Mount socket.Use it below 85°C.A minimum temperature of -40°C must be maintained for the operation of this device.Furthermore, there are other features such as TAPE & REEL PKG WITHOUT CAP, to name a few.
73277-101402LF Features
BergStak®, MezzSelect™ series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
Additional Feature: TAPE & REEL PKG WITHOUT CAP
73277-101402LF Applications
There are a lot of Amphenol ICC (FCI)
73277-101402LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
