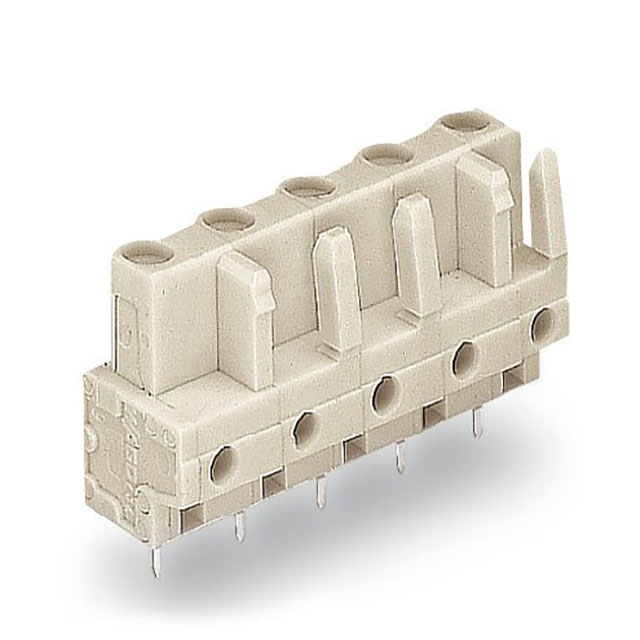

722-735

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Gender :

F

Contact Finish :

Tin

Wire Strip Length :

-

Termination Method :

Solder

HTS :

8536.69.40.40

Wire Gauge or Range - mm² :

-

Package :

Box

Positions Per Level :

5

CS :

7.50mm

Voltage :

300 V

Nominal current - rounded value :

15A

Current :

15 A

Product Length (mm) :

36.5

Packaging type :

Carton (box)

Type of fastening :

Solder

Approvals :

CB, UR

Contact Material :

COPPER ALLOY

Dim :

(L x W x H) 11.60 x 36.50 x 23.25 mm

Series :

722

Product Status :

Active

Voltage - IEC :

630 V

Manufacturer :

Wago

Mounting :

Through Hole

Terminal Pitch (mm) :

7.5

Material of contact surface :

Tin

Current - IEC :

12A

Board contact surface :

Tin plated

Housing Color :

Light Gray

Reach Compliance Code :

Compliant

Fastening Method :

Plug In

Length :

11.60mm

Connection :

Print

Maximum Current Rating (A) :

15

Insulation Height :

0.719 (18.26mm)

Case material :

PA 66

Number of Contacts :

5

Current - UL :

15 A

Torque - Screw :

-

Pollution degree :

2

EU RoHS :

Compliant

Product Weight (g) :

5.5

Rated current In :

12

Temperature :

-60-85 °C

Over voltage category :

III

Minimum Operating Temperature (°C) :

-60

Height :

23.25mm

Width :

36.50mm

Number of Circuits :

5

Ingress Protection :

-

Wire Gauge or Range - AWG :

-

Contact Mating Finish :

Tin

Number of Rows :

1

Nominal voltage :

630V

Housing Material :

Polyamide (PA66), Nylon 6/6

Type :

PC Terminal Block

Safety Approval :

UL

Number of Ways :

5

Type of electric connection :

Soldering connection

Material Flammability Rating :

UL94 V-0

Features :

Retention Latches (Non-Wire Side)

Connector contact surface :

Tin plated

Contact Tail Length :

0.197 (5.00mm)

Body Orientation :

Straight

ECCN Code :

EAR99

Voltage - UL :

600 V

Header Orientation :

Vertical

Maximum Operating Temperature (°C) :

85

Pitch :

0.295 (7.50mm)

Total number of pins :

5

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Industrial packaging :

yes

Termination Style :

Solder

Product Depth (mm) :

11.6

Manufacturer part # :

722-735

Inflammability class of insulation material according to with UL94 :

V0

Operating Temperature :

-60°C ~ 85°C

Product Height (mm) :

18.25

Nominal current :

15A

Automotive :

No

Pins per row :

5

Rated Current :

10 A

Number of Positions :

5

Screw Size :

-

Color :

Gray

No. of rows :

1

Number of Levels :

1

Depth :

11.6mm

Number of Decks :

1

ECCN (US) :

EAR99

Maximum Voltage Rating :

300V

HTS Code :

8536.69.40.40

Rated surge voltage :

6

Mounting Type :

Through Hole

Plug Wire Entry :

-

PPAP :

No

Rated Voltage :

300 V

Content :

50pc(s)
