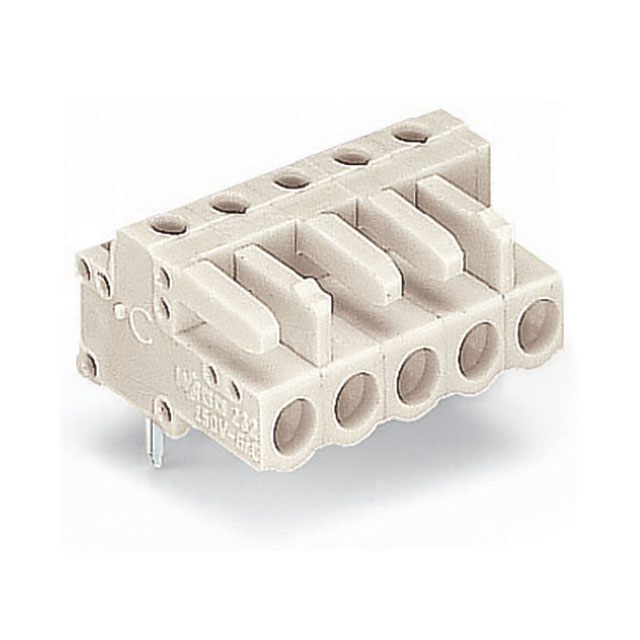

722-240

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Rated surge voltage :

4

Voltage :

300 V

Housing Material :

Polyamide (PA66), Nylon 6/6

Current - UL :

15 A

Nominal current - rounded value :

15A

Pins per row :

10

Nominal voltage :

320V

Operating Temperature :

-60°C ~ 85°C

Number of Contacts :

10 Pole

Wire Strip Length :

-

Over voltage category :

III

Connector contact surface :

Tin plated

Type of fastening :

Solder

Insulation Height :

0.439 (11.16mm)

Rated current In :

12

Case material :

PA 66

Header Orientation :

90°, Right Angle

HTS :

8536.69.40.40

Height :

18.25mm

Current - IEC :

12A

Number of Positions :

10

Temperature :

-60-85 °C

Number of Levels :

1

Pollution degree :

2

Packaging type :

Carton (box)

Manufacturer part # :

722-240

Color :

Gray

Voltage - UL :

600 V

Automotive :

No

Board contact surface :

Tin plated

Package :

Box

Plug Wire Entry :

-

Torque - Screw :

-

Voltage - IEC :

630 V

Screw Size :

-

Material of contact surface :

Tin

Pitch :

0.197 (5.00mm)

Termination Style :

Solder

Series :

722

Product Status :

Active

Total number of pins :

10

Contact Finish :

Tin

Features :

Retention Latches (Non-Wire Side)

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - mm² :

-

ECCN (US) :

EAR99

PPAP :

No

Length :

16.60mm

Current :

15 A

EU RoHS :

Compliant

Contact Mating Finish :

Tin

Ingress Protection :

-

Industrial packaging :

yes

Approvals :

CB, UR

No. of rows :

1

Contact Material :

COPPER ALLOY

Inflammability class of insulation material according to with UL94 :

V0

Connection :

Print

Dim :

(L x W x H) 16.60 x 51.50 x 18.25 mm

Nominal current :

15A

Content :

50pc(s)

Type :

722-240

Width :

51.50mm

Type of electric connection :

Soldering connection

Manufacturer :

Wago

Positions Per Level :

10

Depth :

18.25mm

Wire Gauge or Range - AWG :

-

CS :

5mm

Mounting Type :

Through Hole

Contact Tail Length :

0.197 (5.00mm)
