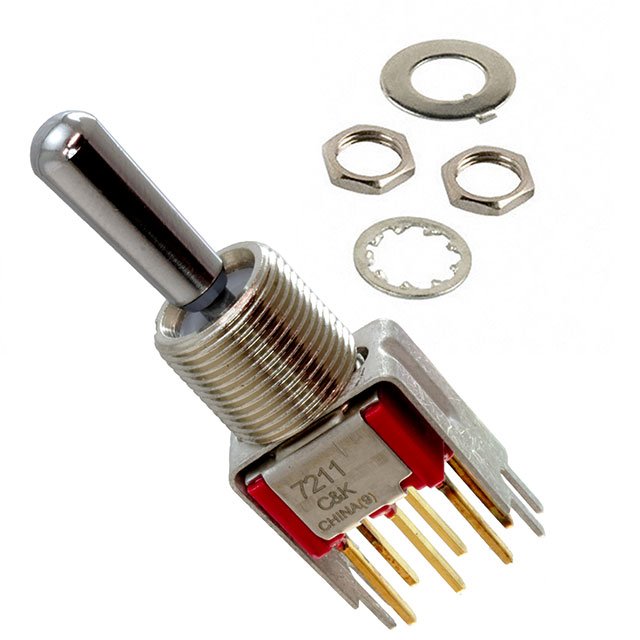

7211TCWV4GE

Manufacturer :

C&K

Product Category :

Packaging :

Bulk

Actuator Material :

Brass, Chrome Plated

Panel Cutout Dimensions :

Circular - 11.91mm Dia

RoHS Status :

ROHS3 Compliant

Series :

7000

Published :

2012

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Jumper needed to achieve triple throw

Throw Configuration :

DP, DPDT, SP3T

Operating Temperature :

-30°C~85°C

Electrical Life :

40,000 Cycles

Illumination Type :

Illuminated, Non-Illuminated

Contact Plating :

Gold, Silver

Illumination :

Non-Illuminated

Voltage - Rated DC :

28V

Ingress Protection :

IP67 - Dust Tight, Waterproof

Max Voltage Rating (AC) :

250V

Mounting Type :

Panel Mount

Current Rating :

5A

Orientation :

Straight

Circuit :

SP3T

Housing Material :

Stainless Steel

Voltage - Rated AC :

120V

Bushing Thread :

15/32-32

Max Voltage Rating (DC) :

28V

Actuator Type :

Standard Round

Termination Style :

PC Pin

Ratings :

Dust Tight, IP67, Waterproof

Length :

16.26mm

Termination :

PC Pin

Contact Material :

Silver

Switch Function :

On-On-On

Current Rating (Amps) :

5A AC/DC

Depth :

11.81mm

Actuator Length :

17.45mm

Mount :

Brackets, Panel

Factory Lead Time :

14 Weeks

Max Current Rating :

5A
