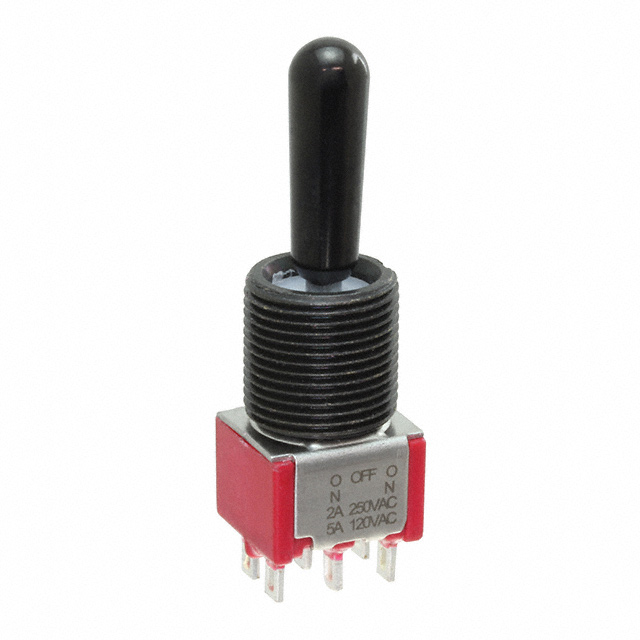

7205TZQE22
Or copy the link below:
- Mfr.Part #
- 7205TZQE22
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 5A 120V
- Stock
- 31,416
- In Stock ：
- 31,416
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Published :
- 2012
- Panel Cutout Dimensions :
- Circular - 11.91mm Dia
- Voltage - Rated AC :
- 120V
- Switch Function :
- Mom-Off-Mom
- Actuator Length :
- 17.45mm
- Current Rating (Amps) :
- 5A AC/DC
- Mounting Type :
- Panel Mount
- Series :
- 7000
- Bushing Thread :
- 15/32-32
- Feature :
- Black Actuator
- Actuator Type :
- Standard Round
- Voltage - Rated DC :
- 28V
- Actuator Material :
- Brass
- Throw Configuration :
- DP, DPDT
- Max Voltage Rating (AC) :
- 250V
- RoHS Status :
- ROHS3 Compliant
- Termination :
- Solder
- Illumination Type :
- Illuminated, Non-Illuminated
- Factory Lead Time :
- 14 Weeks
- Contact Material :
- Silver
- Operating Temperature :
- -30°C~85°C
- Termination Style :
- Solder Lug
- Electrical Life :
- 40,000 Cycles
- Packaging :
- Bulk
- Orientation :
- Straight
- Illumination :
- Non-Illuminated
- Current Rating :
- 5A
- Circuit :
- DPDT
- Max Voltage Rating (DC) :
- 28V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Stainless Steel
- Mount :
- Panel
- Datasheets
- 7205TZQE22
