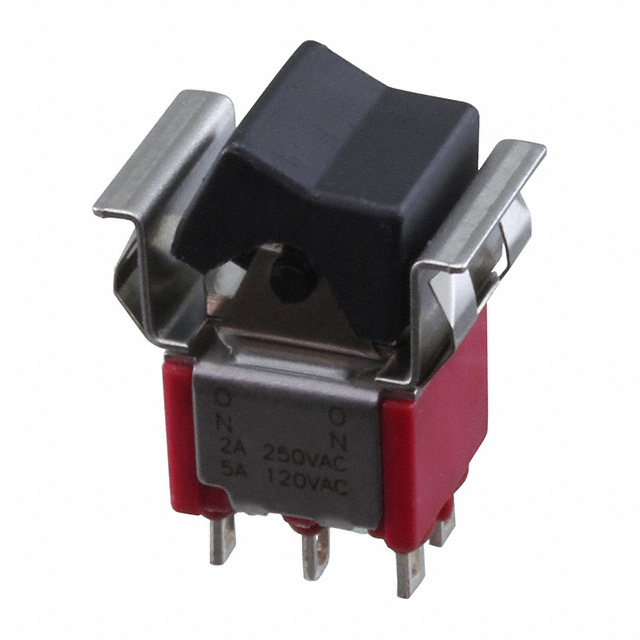

7201J50ZQE2
Or copy the link below:
- Mfr.Part #
- 7201J50ZQE2
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH ROCKER DPDT 5A 120V
- Stock
- 42
- In Stock ：
- 42
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Voltage - Rated AC :
- 120V
- Current Rating (Amps) :
- 5A AC/DC
- Orientation :
- Straight
- Actuator Type :
- Concave (Standard V)
- Current Rating :
- 5A
- Published :
- 2015
- Mount :
- Panel, Snap in
- Max Voltage Rating (DC) :
- 28V
- Circuit :
- DPDT
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 14 Weeks
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 28V
- Electrical Life :
- 100,000 Cycles
- Series :
- 7000
- Housing Material :
- Stainless Steel
- Mounting Type :
- Panel Mount, Snap-In
- Termination Style :
- Solder Lug
- Actuator Material :
- Nylon
- Operating Temperature :
- -30°C~85°C
- Feature :
- Epoxy Sealed Terminals
- Color - Actuator/Cap :
- Black
- Length :
- 18.16mm
- Switch Function :
- On-On
- Termination :
- Solder
- Packaging :
- Tray
- Depth :
- 12.07mm
- Panel Cutout Dimensions :
- Rectangular - 15.24mm x 12.70mm
- Contact Material :
- Silver
- Radiation Hardening :
- No
- Actuator Marking :
- No Marking
- Max Voltage Rating (AC) :
- 250V
- Max Current Rating :
- 5A
- Datasheets
- 7201J50ZQE2
7201J50ZQE2 datasheet pdf and Rocker Switches product details from C&K stock available at
The C&K Components Rocker Switch 7201J50ZQE2 is a double pole double throw (DPDT) rocker switch with a solder lug terminal. It is rated for 5A at 250VAC and 28VDC.
Features:
- DPDT rocker switch
- Rated for 5A at 250VAC and 28VDC
- Solder lug terminal
- ON-None-ON switch configuration
Applications:
The C&K Components Rocker Switch 7201J50ZQE2 is suitable for a variety of applications, including motor control, lighting control, and other industrial applications. It is also suitable for use in consumer electronics, such as audio equipment, gaming consoles, and other electronic devices.
