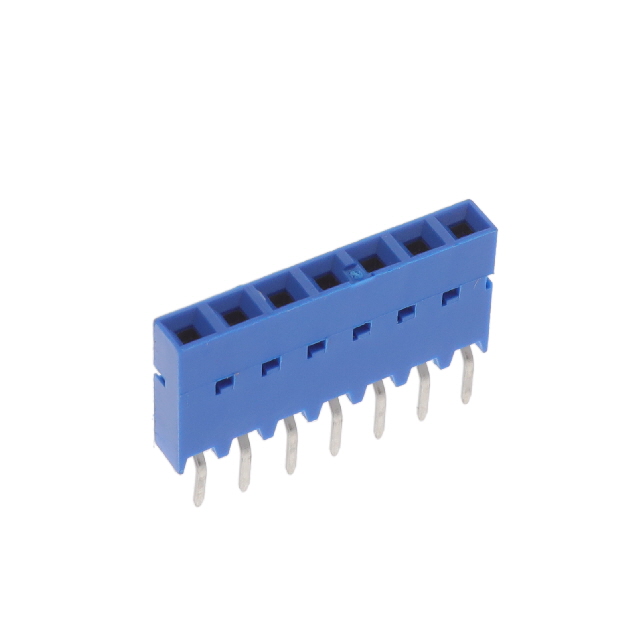

71920-307LF
Or copy the link below:
- Mfr.Part #
- 71920-307LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 7POS 0.1 GOLD PCB
- Stock
- 2
- In Stock ：
- 2
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish - Post :
- Tin
- Insulation Material :
- Thermoplastic, Glass Filled
- Depth :
- 3.19mm
- Length :
- 17.7mm
- RoHS Status :
- RoHS Compliant
- Series :
- Dubox™
- Orientation :
- Straight
- Pitch :
- 2.54mm
- Contact Plating :
- Gold
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Length - Post :
- 0.122 3.10mm
- Insulation Color :
- Blue
- Style :
- Board to Board
- Contact Finish - Mating :
- Gold
- Factory Lead Time :
- 8 Weeks
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 7
- Contact Resistance :
- 20mOhm
- Connector Type :
- Receptacle, Bottom or Top Entry
- Min Operating Temperature :
- -65°C
- Number of Positions Loaded :
- All
- REACH SVHC :
- No SVHC
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Packaging :
- Tube
- Published :
- 2014
- Housing Material :
- Thermoplastic
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Height :
- 0.335 8.51mm
- Color :
- Blue
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Lead Free :
- Lead Free
- Max Voltage Rating (AC) :
- 1kV
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Number of Contacts :
- 7
- Gender :
- Receptacle
- Fastening Type :
- Push-Pull
- Number of Rows :
- 1
- Contact Shape :
- Square
- Max Operating Temperature :
- 125°C
- Termination :
- Solder
- Housing Color :
- Blue
- Contact Type :
- Female Socket
- Radiation Hardening :
- No
- Mount :
- Through Hole
- Datasheets
- 71920-307LF
1 Rows Receptacle, Bottom or Top Entry Solder Phosphor Bronze Through Hole Tube Gold Thermoplastic, Glass Filled 7 Positions Female Socket
71920-307LF Overview
A Receptacle, Bottom or Top Entry package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Dubox™ Series of products.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -65°C at all times.It is possible for the device to be used for the application Automotive, General Purpose, Industrial, Telecommunications.Through Hole mounts the part.
71920-307LF Features
Dubox™ series
71920-307LF Applications
There are a lot of Amphenol ICC (FCI)
71920-307LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
