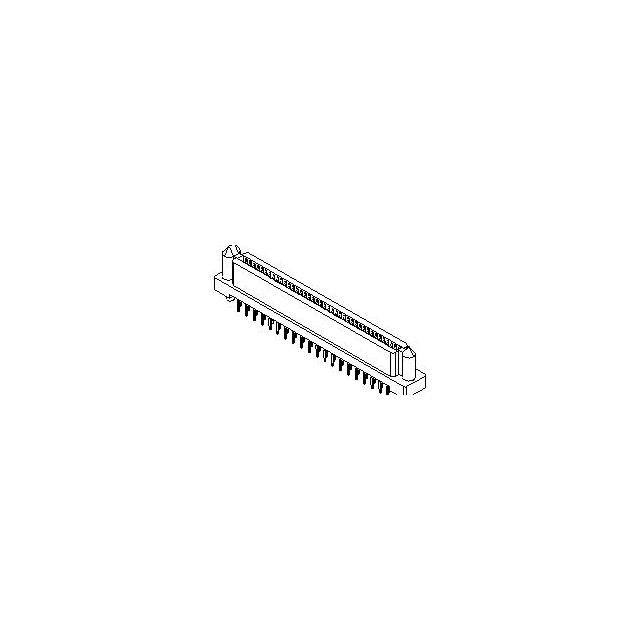

71660-7268
- Mfr.Part #
- 71660-7268
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 1.27MM PITCH EBBI 50D RECEPTACLE
- Stock
- 24
- In Stock :
- 24
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- MIL Conformance :
- No
- Min Operating Temperature :
- -40 °C
- Manufacturer Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- DIN Conformance :
- No
- Package :
- Box
- Additional Feature :
- POLARIZED
- Polarization Key :
- POLARIZED HOUSING
- Plating Thickness :
- 30u inch
- Gender :
- RCP
- Product Depth (mm) :
- 7(mm)
- Application :
- Board-to-Board
- Flammability :
- 94V-0
- Product Status :
- Active
- Insulation Resistance :
- 100000000 Ω
- Mount :
- Through Hole
- Body Breadth :
- 0.276 inch
- Number of Contacts :
- 68(POS)
- Product Height (mm) :
- 11.75(mm)
- Plating :
- Tin
- Pitch :
- 2.54 mm
- Country of Origin :
- US
- RoHS :
- Compliant
- Product Length (mm) :
- 54.58(mm)
- Mounting Style :
- Through Hole
- Lifecycle Status :
- Obsolete (Last Updated: 2 years ago)
- Option :
- GENERAL PURPOSE
- UL Flammability Code :
- 94V-0
- Depth :
- 7 mm
- Pitch (mm) :
- 2.54(mm)
- Insulator Color :
- Black
- Voltage Rating Max :
- 30V
- Filter Feature :
- No
- Contact Style :
- CENTRONIC
- Operating Temperature Max Deg. C :
- 105C
- Terminal Pitch :
- 1.27 mm
- Series :
- *
- Total Number of Contacts :
- 68
- Mixed Contacts :
- No
- Reference Standard :
- UL, CSA
- Length :
- 54.58 mm
- Current Rating :
- 1 A
- PCB Contact Row Spacing :
- 1.905 mm
- Number of Positions :
- 68
- Termination Method :
- Solder
- Body/Shell Style :
- Receptacle
- Mounting Option 1 :
- LOCKING
- Number of Rows :
- 2
- Number of Terminals :
- 68
- Number of Circuits :
- 60
- Number Of PCB Rows :
- 4
- Operating Temp Range :
- -40C to 105C
- Operating Temperature Min Deg. C :
- -40C
- Reach Compliance Code :
- Compliant
- Termination Type :
- Solder
- Rated Current (Signal) :
- 1 A
- Packaging :
- Tray
- Body Orientation :
- Straight
- Current Rating (Max) :
- 1/Contact(A)
- Contact Resistance :
- 20 mΩ
- Orientation :
- Vertical
- Manufacturer :
- Molex
- Type :
- EBBI
- Durability :
- 2000 cycles
- Pbfree Code :
- yes
- Contact Material :
- COPPER ALLOY
- IEC Conformance :
- No
- Number of Ports :
- 1(Port)
- Mating Contact Pitch :
- 0.05 inch
- Mounting Type :
- BOARD
- Max Operating Temperature :
- 105 °C
- PCB Contact Pattern :
- STAGGERED
- Contact Gender :
- FEMALE
- Terminal Length :
- 0.134 inch
- Body Depth :
- 0.386 inch
- Dielectric Withstanding Voltage :
- 500VAC V
- Contact Plating :
- Gold Over Nickel
- Termination :
- Solder
- Contact Pattern :
- RECTANGULAR
- Board Mounting Option :
- PEG
- Reliability :
- COMMERCIAL
- Connector Type :
- Receptacle
- Subcategory :
- Headers and Edge Type Connectors
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Datasheets
- 71660-7268
